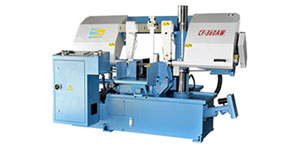

Automatic Double Column Band Saw Machines
Automatic Double Column Band Saw Machines for cutting metal rods and bars, variable speed
- Independent feed bed and vice system to provide accurate feeding of packs or bent bars
- Both rear vice jaws are fitted with retract on the return stroke to allow feeding of deformed or bent materials and to prevent scaring of material.
- Fully automatic and will shut down when the preset number of cuts is reached or material is finished
- Full stroke hydraulic vice jaws
- Motion detector will automatically shut down the machine in case of blade breakage or jam
Standard Equipments:
- Inverter Blade Speed Drive
- Hydraulic Blade Tension
- Auto-Chip Conveyor
- Fluid Coolant System
- (26CF-325BS only) Pack Clamp System
Optional Equipments:
- NC Control
- Pack Clamp System
- Mist lubrication
- Nesting Fixture
- Vice Pressure Regulator
- 2M Roller Table
Download

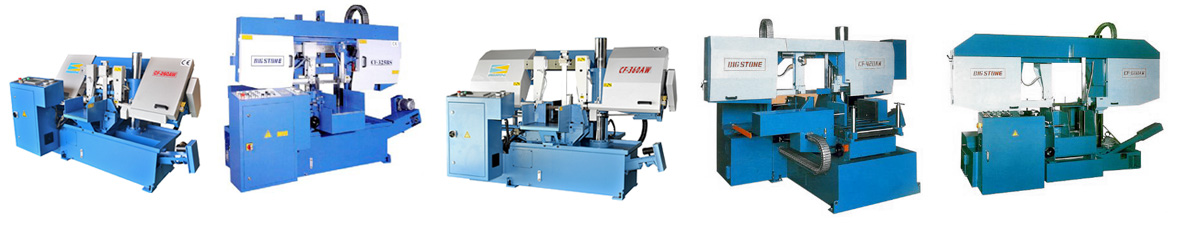

| Order Code | 26CF-260AW | 26CF-325BS | 26CF-360AW | 26CF-460AW | 26CF-600AW | |
| Cutting Capacity (mm) |
● Round | 260 | 330 | 360 | 460 | 600 |
| ■ Rectangle | 260 x 280 | 330 x 370 | 360 x 360 | 460 x 460 | 600 x 600 | |
| Motors | Saw Blade | 3.75kW | 3.75kW | 3.75kW | 5.5kW | 7.5kW |
| Hydraulic | 0.75kW | 0.75kW | 0.75kW | 1.5kW | 2.2kW | |
| Coolant | 0.1kW | 0.1kW | 0.1kW | 0.2kW | 0.2kW | |
| Blade Size | 3660 x 34 x 1.1 | 4430 x 34 x 1.1 | 4430 x 34 x 1.1 | 5545 x 41 x 1.3 | 6900 x 54 x 1.6 | |
| Blade Speed (M/min) | 20 – 120 | 20 – 120 | 20 – 120 | 20 – 90 | 20 – 90 | |
| Single Feed Stroke (mm) | 400 | 600 | 500 | 500 | 500 | |
| Working Height (mm) | 660 | 700 | 660 | 700 | 600 | |
| Dimensions (mm) |
Length | 1750 | 1730 | 1750 | 2120 | 2250 |
| Width | 2300 | 2160 | 2300 | 2970 | 3580 | |
| Height | 1650 | 1760 | 1900 | 2225 | 2360 | |
| Net Weight (kg) | 1700 | 2300 | 2200 | 3200 | 4800 | |
