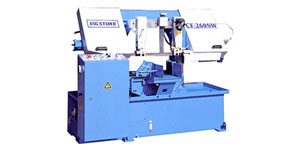

Semi-Auto Double Column Band Saw Machines
Semi-Auto Double Column Band Saw Machines for cutting metal rods and bars, variable speed.
Standard Equipments:
- Inverter Blade Speed Drive
- Hydraulic Blade Tension
- Full Stroke Vice Cylinder
- Fluid Coolant System
Optional Equipments:
- Motion Detector
- Auto-Chip Conveyor
- Mist Lubrication
- Vice Pressure Regulator
- 2M Roller Table
more
Download
Swipe
| Order Code | 26CF-260SW | 26CF-360SW | 26CF-460SW | 26CF-600SW | |
| Cutting Capacity (mm) |
● Round | 260 | 360 | 460 | 600 |
| ■ Rectangle | 260 x 280 | 360 x 360 | 460 x 460 | 600 x 600 | |
| Motors | Saw Blade | 3.75kW | 3.75kW | 5.5kW | 7.5kW |
| Hydraulic | 0.75kW | 0.75kW | 1.5kW | 2.2kW | |
| Coolant | 0.1kW | 0.1kW | 0.2kW | 0.2kW | |
| Blade Size | 3660 x 34 x 1.1 | 4430 x 34 x 1.1 | 5545 x 41 x 1.3 | 6900 x 54 x 1.6 | |
| Blade Speed (M/min) | 20 – 120 | 20 – 120 | 20 – 90 | 20 – 90 | |
| Working Height (mm) | 660 | 660 | 700 | 600 | |
| Dimensions (mm) |
Length | 1100 | 1200 | 1700 | 1550 |
| Width | 2300 | 2300 | 2970 | 3580 | |
| Height | 1600 | 1900 | 2225 | 2360 | |
| Net Weight (kg) | 1200 | 1600 | 2300 | 4000 | |
