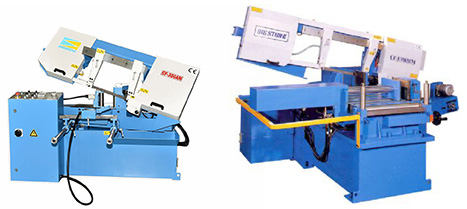

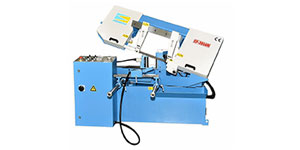

Automatic Miter Band Saw Machine
Automatic Miter Band Saw Machines full automatic with hydraulic power roller feed vice.
- Easily set angle from 90° to 45° (30°) for miter cutting
- Motion sensor to shut down the saw should the blade break or slip
- The saw blade stops automatically upon finishing the preset number of cuts
Standard Equipments:
- Tunsten carbide roller guide
- Hydraulic Vice Cylinder
- Fluid Coolant System
- (26CF-350AM only) Blade Tension Device
- (26CF-530HBM only) Inverter Blade Speed Drive
- (26CF-530HBM only) Auto-Chip Conveyor System
Optional Equipments:
- Inverter Blade Speed Drive
- Nesting Fixture
- Hydraulic Blade Tension
- Laser Liner
- 2M Roller Table
- Mist Lubrication
more
Download
Swipe
| Order Code | 26CF-350AM | 26CF-530HBM | |
| Cutting Capacity (mm) |
● Round 90° | 280 | 330 |
| ■ Rectangle 90° | 270 x 350 | 320 x 530 | |
| ■ Rectangle 45° Left | 220 x 220 | 300 x 350 | |
| ■ Rectangle 30° Left | - | 300 x 220 | |
| Motors | Saw Blade | 1.5kW | 3.75kW |
| Hydraulic | 0.2kW | 0.75kW | |
| Coolant | 0.1kW | 0.1kW | |
| Blade Size | 3560 x 27 x 0.9 | 4570 x 34 x 1.1 | |
| Blade Speed (M/min) | 35 / 55 / 75 / 90 | 25 – 95 (variable) | |
| Single Feed Stroke (mm) | - | 500 | |
| Working Height (mm) | 600 | 750 | |
| Dimensions (mm) |
Length | 1200 | 2520 |
| Width | 1900 | 2280 | |
| Height | 1600 | 1620 | |
| Net Weight (kg) | 850 | 1950 | |
