This cam action fixture clamp provides positive down force while using very
little space on a fixture. Workpieces can be clamped in series by using the
back surface of a clamp to locate the next workpiece.
The hardened steel clamping element has both a smooth surface for machined
workpieces and a serrated clamping surface for rougher work. The
height of the clamp can be adjusted by milling the slot deeper
in the fixture plate.
Order Code |

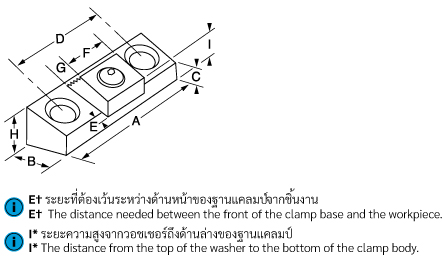

A (mm) |
B (mm) |
C (mm) |
D (mm) |
E† (mm) |
F (mm) |
G (mm) |
H (mm) |
I* (mm) |
Total Distance of Movement (mm) | Mounting Screws (Included) | Max Torque (N.m.) | Holding Force (N) |
11MITEE-82584 | M10 | 7M | 1.27 | 20.60 | 6.35 | 19.0 | 10.15 | 15.75 | 21.5 | 1.6 | M8x16 LHCS | 28.20 | 8900 |
11MITEE-82588 | M12 | 8M | 2.03 | 25.40 | 9.52 | 22.8 | 12.70 | 15.75 | 24.4 | 2.0 | M10x20 LHCS | 88.13 | 17800 |
11MITEE-82592 | M16 | 12M | 2.54 | 30.15 | 12.70 | 28.5 | 15.00 | 31.75 | 43.2 | 2.5 | M12x30 SHCS | 135.58 | 26700 |
For quotations, let us know the product code and quantity. We will surely get back to you.
