Knife Edge Clamps can be used instead of the original brass hex clamps for clamping rough cut stock, castings and any material that requires a hardened clamping element.

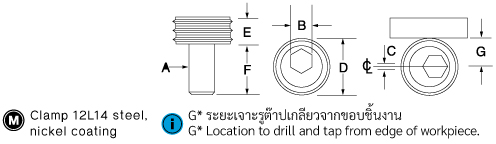

Order Code |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Max Torque (N.M.) |
Holding Force | Clamps Per Pack |
11MITEE-82584 | M10 | 7M | 1.27 | 20.60 | 6.35 | 19.0 | 10.15 | 28.00 | 8900 N | 8 |
11MITEE-82588 | M12 | 8M | 2.03 | 25.40 | 9.52 | 22.8 | 12.70 | 88.00 | 17800 N | 8 |
11MITEE-82592 | M16 | 12M | 2.54 | 30.15 | 12.70 | 28.5 | 15.00 | 135.00 | 26700 N | 4 |
For quotations, let us know the product code and quantity. We will surely get back to you.
