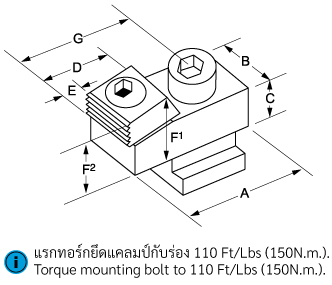

Toe Clamp designed for mounting on T-Slot table.
Order Code |
T-Slot Size |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F1 (mm) |
F2 (mm) |
G (Neutral Position) | Max Torque (N.m.) |
Holding Force (N) |
11MITEE-54014 | 14 | 50 | 28.5 | 15.72 | 25.4 | 9.6 | 25.4 | 22.2 | 37.59 | 88 | 17800 |
11MITEE-54016 | 16 | 50 | 28.5 | 15.72 | 25.4 | 9.6 | 25.4 | 22.2 | 37.59 | 88 | 17800 |
11MITEE-54018 | 18 | 50 | 28.5 | 15.72 | 25.4 | 9.6 | 25.4 | 22.2 | 37.59 | 88 | 17800 |
For quotations, let us know the product code and quantity. We will surely get back to you.
