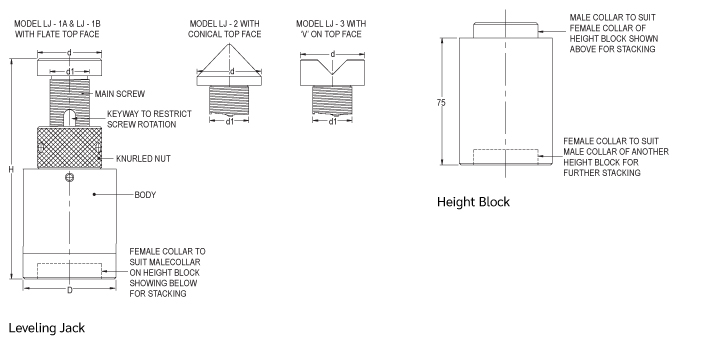

Height block for increase the leveling jack height.
Leveling Jack
Model: 11LJ
Height Block
Model: 11HBLJ
Block
LEVELLING JACK | ||||||||
Order Code |
H MIN. AT CLOSED POSITION | H MAX. AT OPEN POSITION | DIA AT BOTTOM D | DIA AT TOP d |
DIA OF SCREW d1 | TYPE OF TOP FACE | MAX. LOAD TONS. | N. W. Kgs. |
11LJ-1A | 75 | 100 | 48 | 38 | M-24 | FLAT | 5.0 | 0.76 |
11LJ-1B | 100 | 150 | 48 | 38 | M-24 | FLAT | 5.0 | 1.11 |
11LJ-2 | 120 | 170 | 48 | 38 | M-24 | CONICAL | 5.0 | 1.13 |
11LJ-3 | 105 | 155 | 48 | 38 | M-24 | ‘V’ | 5.0 | 1.11 |
HEIGHT BLOCK | ||
Model Code |
EFFECTIVE HEIGHT INCREASE WITH ONE HEIGHT BLOCK | N. W. Kgs. |
11HBLJ-75 | 75 | 1.11 |
For quotations, let us know the product code and quantity. We will surely get back to you.
