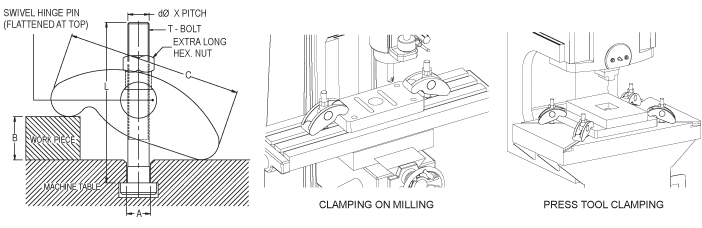

Holding clamps for milling and light press. Come with t-slot stud for installation onto machine table.
Model: 11USC
Order Code |
T-SLOT SIZE A |
dØ x PITCH x L | CLAMPING RANGE B |
LENGTH OF CLAMP C |
BREADTH OF CLAMP |
TIGHTENING TORQUE Nm Max.* |
CLAMPING FORCE Max. |
N. W. Kgs. |
11USC-12A | 12 | M12 x 1.75 x 100 | 0-60 | 105 | 42 | 90 | 2000 Kgs. | 0.84 |
11USC-12B | 14 | M12 x 1.75 x 100 | 0-60 | 105 | 42 | 90 | 2000 Kgs. | 0.86 |
11USC-16A | 16 | M16 x 2.0 x 130 | 0-80 | 130 | 50 | 210 | 3200 Kgs. | 1.73 |
11USC-16B | 18 | M16 x 2.0 x 130 | 0-80 | 130 | 50 | 210 | 3200 Kgs. | 1.74 |
11USC-20A | 20 | M20 x 2.5 x 150 | 0-100 | 160 | 55 | 410 | 5000 Kgs. | 2.45 |
11USC-20B | 22 | M20 x 2.5 x 150 | 0-100 | 160 | 55 | 410 | 5000 Kgs. | 2.48 |
11USC-24A | 24 | M24 x 3.0 x 210 | 0-120 | 190 | 65 | 730 | 6000 Kgs. | 4.39 |
11USC-24B | 28 | M24 x 3.0 x 210 | 0-120 | 190 | 65 | 730 | 6000 Kgs. | 4.68 |
For quotations, let us know the product code and quantity. We will surely get back to you.
