Leveling Jack & Height Block (Heavy Duty)

Height block for increase the leveling jack height.

LEVELLING JACK - HEAVY DUTY
Model: 11LJ-HD

HEIGHT BLOCK FOR LEVELLING JACK - HEAVY DUTY
Model: 11HBLJ-HD

more
  • Model 11LJ-HD/11HBLJ-HD
  • Manufacturer Code LJ-HD/HBLJ-HD
Brand
Toolfast
Toolfast
  • Type

    Block

Swipe

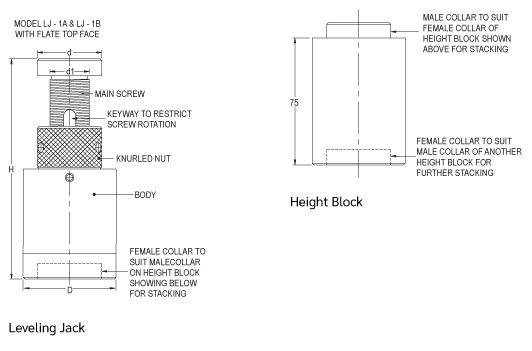

Leveling Jack & Height Block (Heavy Duty) drawing
LEVELLING JACK - HEAVY DUTY
Order
Code
H MIN. AT CLOSED POSITION H MAX. AT OPEN POSITION DIA AT BOTTOM D DIA AT
TOP d
DIA OF SCREW d1 TYPE OF TOP FACE MAX. LOAD TONS. N. W. Kgs.
11LJ-HD 160 230 75 50 32Ø FLAT 8.0 2.82
Swipe
HEIGHT BLOCK FOR LEVELLING JACK - HEAVY DUTY
Model
Code
EFFECTIVE HEIGHT INCREASE WITH ONE HEIGHT BLOCK N. W. Kgs.
11HBLJ-HD-75 75 1.58
