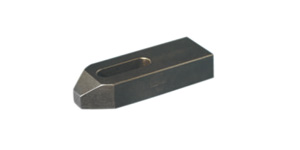

Strap Clamp

Strap Clamps for work holding on machine bed.
Model: 11TSC

more
  • Model 11TSC
  • Manufacturer Code TSC
Brand
Toolfast
Toolfast
  • Type

    Clamp

Swipe
Strap Clamp drawing
Order Code Bolt Slot
D
L W H A B h Weight
(kg)
11TSC-8-60 M8 60 24 12 13 22 7 0.09
11TSC-10-80 M10 80 30 15 15 30 9 0.23
11TSC-12-100 M12 100 38 18 21 40 12 0.43
11TSC-12-125 M12 125 38 18 21 50 12 0.56
11TSC-14-125 M14 125 48 24 26 45 15 0.85
11TSC-16-125 M16 125 48 24 26 45 15 0.85
11TSC-16-160 M16 160 48 24 26 65 15 1.11
11TSC-20-160 M20 160 62 30 30 60 18 1.89
11TSC-24-200 M24 200 72 38 35 80 21 3.39
11TSC-24-250 M24 250 72 38 35 100 21 4.30
11TSC-30-250 M30 250 72 48 45 1000 28 5.26
