Pitbull Clamps

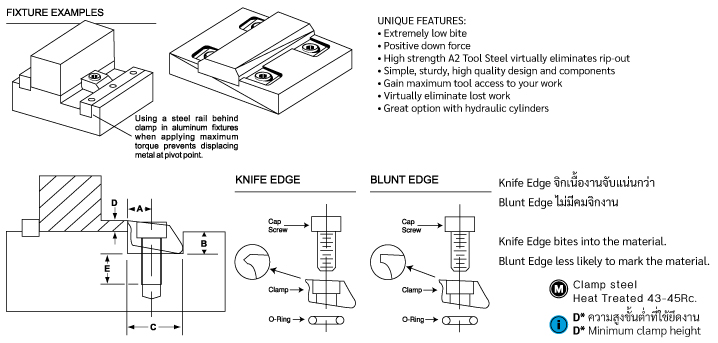

Pitbull® Clamp remains the lowest profile, highest holding force clamp in the industry today. High vertical and horizontal clamping forces are generated, considering the size of the Pitbull® Clamps.
more
- Model 11MITEE
- Manufacturer Code Pitbull Clamps
Swipe
| Order Code |
Description | A (mm) |
B (mm) |
Clamp Width C (mm) | D* (mm) |
E (mm) |
SHCS Screw Size |
Max. Torque (N.m.) | Holding Force (N.) |
Total Throw |
No. Per Package |
|
| 11MITEE-56000 | Tool Steel | Knife Edge | 3.81 | 3.55 | 9.52 | 1.90 | 6.60 | M2.5 | 1.8 | 2800 | .190 | 8 |
| 11MITEE-56010 | Tool Steel | Blunt Edge | 3.81 | 3.55 | 9.52 | 1.90 | 6.60 | M2.5 | 1.8 | 2800 | .190 | 8 |
| 11MITEE-56015 | Brass | Blunt Edge | 3.81 | 3.55 | 9.52 | 1.90 | 5.59 | M2.5 | .56 | 875 | .190 | 8 |
| 11MITEE-56020 | Tool Steel | Knife Edge | 5.08 | 4.75 | 12.70 | 2.54 | 9.90 | M4 | 5.6 | 6600 | .406 | 8 |
| 11MITEE-56030 | Tool Steel | Blunt Edge | 5.08 | 4.75 | 12.70 | 2.54 | 9.90 | M4 | 5.6 | 6600 | .406 | 8 |
| 11MITEE-56040 | Brass | Blunt Edge | 5.08 | 4.75 | 12.70 | 2.54 | 8.64 | M4 | 2.8 | 1750 | .406 | 8 |
| 11MITEE-56050 | Tool Steel | Knife Edge | 7.62 | 7.11 | 19.05 | 3.81 | 14.48 | M6 | 22.5 | 16000 | .610 | 6 |
| 11MITEE-56060 | Tool Steel | Blunt Edge | 7.62 | 7.11 | 19.05 | 3.81 | 14.48 | M6 | 22.5 | 16000 | .610 | 6 |
| 11MITEE-56065 | Brass | Blunt Edge | 7.62 | 7.11 | 19.05 | 3.81 | 11.18 | M6 | 5.6 | 4200 | .610 | 6 |
| 11MITEE-56070 | Tool Steel | Knife Edge | 10.16 | 11.43 | 25.40 | 6.35 | 18.03 | M10 | 40.6 | 26000 | 1.270 | 4 |
| 11MITEE-56075 | Tool Steel | Blunt Edge | 10.16 | 11.43 | 25.40 | 6.35 | 18.03 | M10 | 40.6 | 26000 | 1.270 | 4 |
| 11MITEE-56080 | Tool Steel | Knife Edge | 15.24 | 16.26 | 38.10 | 9.52 | 19.56 | M12 | 145.0 | 50000 | 1.900 | 2 |
| 11MITEE-56085 | Tool Steel | Blunt Edge | 15.24 | 16.26 | 38.10 | 9.52 | 19.56 | M12 | 145.0 | 50000 | 1.900 | 2 |
