Socket Head Cap Bolt

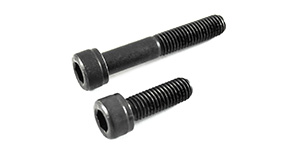

Socket Head Cap Bolt (M thread) made from steel with blacken surface treatment.
Model: 24CB
Standards:
DIN 912
ISO 4762
ANSI 18.3.1M
JIS B 1176

more
  • Model 24CB
  • Manufacturer Code CB
Brand
SRT
SRT
Swipe
Socket Head Cap Bolt drawing
Order Code MxP B Max
ℓ
Code M L
24CB 2 4 6 8 10 12 16 20 25


































M2.0x0.40 1.5 16
2.5 4 6 8 10 12 16 20 25


































M2.5x0.45 2 17
3 4 6 8 10 12 16 20 25 30 35 40 45 50





























M3.0x0.50 2.5 18
4 4 6 8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110




















M4.0x0.70 3 20
5 4 6 8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150
















M5.0x0.80 4 22
6 4 6 8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150
















M6.0x1.00 5 24
8


10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160
180
200

230
250 280 300




M8.0x1.25 6 28
10




16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200

230
250 280 300




M10x1.50 8 32
12




16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300




M12x1.75 10 36
14






25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200

230
250






M14x2.00 12 40
16






25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400 M16x2.00 14 44
18









40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200

230
250 280 300 320 340 360 380 400 M18x2.50 14 48
20









40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400 M20x2.50 17 52
22











50 55 60 65 70 75 80 90 100 110 120 130 140 150

180
200

230
250 280 300 320 340 360 380 400 M22x2.50 17 56
24











50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400 M24x3.00 19 60
27











50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400 M27x3.00 19 66
30











50
60
70
80 90 100 110 120 130 140 150 160 170 180 190 200

230
250 280 300 320 340 360 380 400 M30x3.50 22 72
33

















80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400 M33x3.50 22 84
36

















80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400 M36x4.00 27 96
