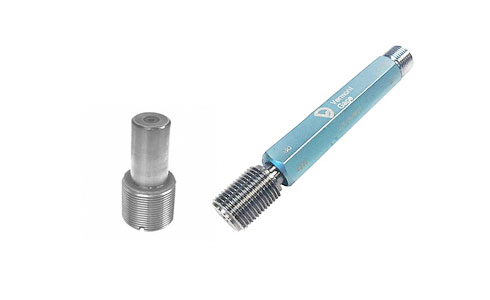

NPSM Straight Pipe Plug Gage

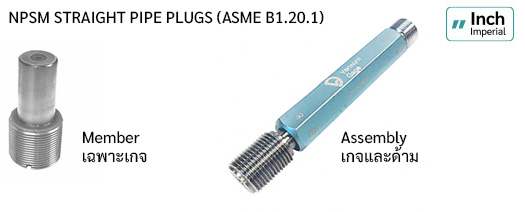

NPSM STRAIGHT PIPE PLUGS (ASME B1.20.1)
Pipe Thread Plug Gage for work inspection.
Certificate of Accuracy is included.
Vermont Gage products are Made in USA.
- NPSM (ASME B1.20.1)
- Class X tolerances
- NIST traceable
- Tool Steel; 60/62 Rc (Cold Stabilized)
- Certificate of Accuracy included
more
- Manufacturer Code NPSM/Inch/Plug
Swipe
| Size NPSM |
Pitch Diameter | Order Code | |||
| Go Member 2B |
NoGo Member 2B |
Go Member 2B |
NoGo Member 2B |
Go/NoGo Assembly 2B |
|
| 1/8-27 | 0.3736 | 0.3783 | 04421102510 | 04421102520 | 04421102530 |
| 1/4-18 | 0.4916 | 0.4974 | 04421104010 | 04421104020 | 04421104030 |
| 3/8-18 | 0.6270 | 0.6329 | 04421105510 | 04421105520 | 04421105530 |
| 1/2-14 | 0.7784 | 0.7851 | 04421107010 | 04421107020 | 04421107030 |
| 3/4-14 | 0.9889 | 0.9958 | 04421108510 | 04421108520 | 04421108530 |
| 1-11 1/2 | 1.2386 | 1.2462 | 04421110010 | 04421110020 | 04421110030 |
| 1 1/4-11 1/2 | 1.5834 | 1.5912 | 04421111510 | 04421111520 | 04421111530 |
| 1 1/2-11 1/2 | 1.8223 | 1.8302 | 04421113010 | 04421113020 | 04421113030 |
| 2-11 1/2 | 2.2963 | 2.3044 | 04421114510 | 04421114520 | 04421114530 |
| 2 1/2-8 | 2.7622 | 2.7720 | 04421116010 | 04421116020 | 04421116030 |
| 3-8 | 3.3885 | 3.3984 | 04421117510 | 04421117520 | 04421117530 |
