NPTF Pipe Plug Gage

NPTF TAPERED PIPE PLUGS (ASME B1.20.5)

Pipe Thread Plug Gage for work inspection.
Certificate of Accuracy is included.
Vermont Gage products are Made in USA.

  • NPTF (ASME B1.20.5)
  • Class X tolerances
  • NIST traceable
  • Tool Steel; 60/62 Rc (Cold Stabilized)
  • Certificate of Accuracy included
more
  • Manufacturer Code NPTF/Inch/Plug
Brand
Vermont Gage
Vermont Gage
Swipe

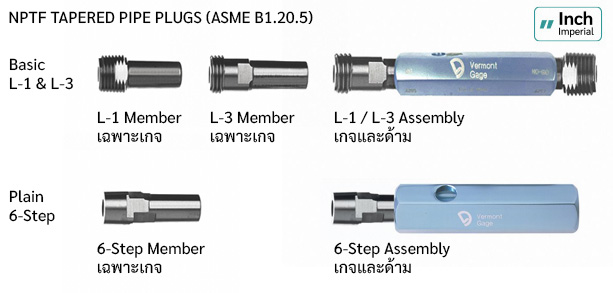

NPTF Pipe Plug Gage drawing
Size
NPTF		 Basic Plain 6-Step
L-1
(No Handle)		 L-3
(No Handle)		 L-1/L-3 Assembly
(With Handle)		 Member
(No Handle)		 Assembly
(With Handle)
1/16-27 04411101010 04411101020 04411101030 04411101070 04411101080
1/8-27 04411102510 04411102520 04411102530 04411102570 04411102580
1/4-18 04411104010 04411104020 04411104030 04411104070 04411104080
3/8-18 04411105510 04411105520 04411105530 04411105570 04411105580
1/2-14 04411107010 04411107020 04411107030 04411107070 04411107080
3/4-14 04411108510 04411108520 04411108530 04411108570 04411108580
1-11 1/2 04411110010 04411110020 04411110030 04411110070 04411110080
1 1/4-11 1/2 04411111510 04411111520 04411111530 04411111570 04411111580
1 1/2-11 1/2 04411113010 04411113020 04411113030 04411113070 04411113080
2-11 1/2 04411114510 04411114520 04411114530 04411114570 04411114580
2 1/2-8 04411116010 04411116020 04411116030 04411116070 04411116080
3-8 04411117510 04411117520 04411117530 04411117570 04411117580
