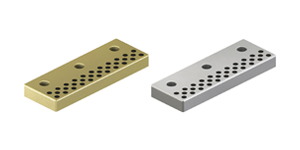

CAM Upper Plate CUP
CAM Upper Plate, standard Oil free component for metal stamping die.
Model: 25CUP
25CUPW bronze material : Copper Alloy + Oil Free Solid Lubricant
25CUPF cast iron material : FC250 + Oil Free Solid Lubricant
25CUPI steel material : S45C + Oil Free Solid Lubricant
25CUPS sintered material : Sintered Alloy
more
- Model 25CUP/25CUPW/25CUPF/25CUPS/25CUPI
- Manufacturer Code CUP/CUPW/CUPF/CUPS/CUPI/SOPF/SOPS/SOPX/SOPW/FUP/CUN/SUP
View Online
Download
Swipe
| Model | W | L | T | W1 | L1 | L2 | d | S |
| 25CUPW 25CUPF 25CUPS 25CUPI |
55 | 180 | 25 | 37.5 | 120 | 30 | 18 | 24 |
| 70 | 160 | 50 | 110 | 25 | 18 | 25 | ||
| 200 | 75 | 25 | 25 | |||||
| 240 | 90 | 30 | 30 | |||||
| 85 | 200 | 28 | 60 | 75 | 25 | 22 | 30 | |
| 240 | 90 | 30 | ||||||
| 300 | 80 | 30 | ||||||
| 350 | 90 | 40 | ||||||
| 100 | 200 | 75 | 25 | |||||
| 240 | 90 | 30 | ||||||
| 300 | 80 | 30 | ||||||
| 350 | 90 | 40 |
