CAM Upper Plate SCU

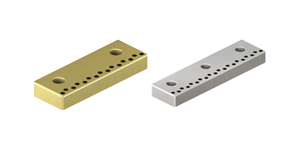

CAM Upper Plate, standard Oil free component for metal stamping die.
Model: 25SCU
25SCUW bronze material : Copper Alloy + Oil Free Solid Lubricant
25SCUF cast iron material : FC250 + Oil Free Solid Lubricant
25SCUI steel material : S45C + Oil Free Solid Lubricant
25SCUS sintered material material : Sintered Alloy
more
- Model 25SCU/25SCUW/25SCUS/25SCUI/25SCUF
- Manufacturer Code SCU/SCUW/SCUS/SCUI/SCUF/CUPW/CUPF/MCUF/MCUS/MCUX/MCUW/FCU/CUN
View Online
Download
Swipe
| Model | W | L | T | L1 | L2 | L3 | W1 | S | D |
| 25SCUW 25SCUI |
25 | 75 | 10 | 45 | 15 | - | 8 | 7.5 | 9 |
| 100 | 50 | 25 | |||||||
| 125 | 75 | 25 | |||||||
| 33 | 75 | 10 | 45 | 15 | 12.5 | 9 | 11 | ||
| 100 | 50 | 25 | |||||||
| 125 | 75 | ||||||||
| 150 | 100 | ||||||||
| 200 | 75 | ||||||||
| 25SCUW 25SCUF 25SCUI 25SCUS |
52 | 100 | 20 | 50 | 25 | - | 20 | 13 | 13 |
| 150 | 50 | ||||||||
| 200 | 75 | ||||||||
| 250 | 75 | 50 | |||||||
| 72 | 100 | 30 | 50 | 25 | - | 25 | 22 | 18 | |
| 150 | 50 | ||||||||
| 200 | 75 | ||||||||
| 250 | 75 | 50 | |||||||
| 77 | 150 | 35 | 50 | 25 | - | 25 | 27 | 18 | |
| 200 | 75 | ||||||||
| 250 | 75 | 50 | |||||||
| 82 | 150 | 40 | 50 | 25 | - | 25 | 32 | 18 | |
| 200 | 75 | ||||||||
| 250 | 75 | 50 | |||||||
| 25SCUW 25SCUF 25SCUI |
105 | 150 | 50 | - | 25 | 32 | 18 | ||
| 200 | 50 | 50 | |||||||
| 250 | 75 |
