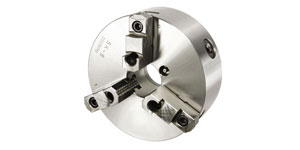

3-Jaw Powerful Scroll Chuck
3-Jaw Powerful Scroll Chuck more powerful with bigger hard jaws, and it can be change to use soft jaws for more precision work.
- Gripping accuracy of 0.03mm.
- Material: Meehanite
Model: 02SK
more
View Online
Download
Swipe

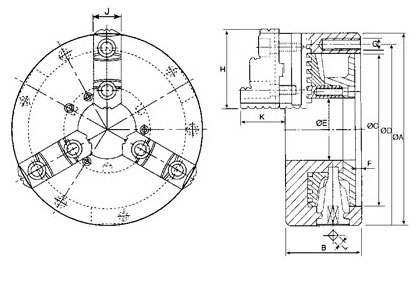

| Order Code | A | B | C | D | E | F | G | H | J | K | L | Allowable Handle Torque (kgf.m) |
Gripping Force (kgf) |
I (kgf.m2) |
Weight (kg) |
Max Speed (r.p.m.) |
Gripping Range (O.D.) |
Gripping Range (I.D.) |
| 02SK-06 | 165 | 67 | 130 | 147 | 45 | 5 | 3-M10 | 72 | 26 | 39 | 10 | 9 | 3300 | 0.03 | 9 | 4000 | Ø3-Ø160 | Ø55-Ø150 |
| 02SK-07 | 192 | 76.5 | 155 | 172 | 58 | 5 | 3-M10 | 82 | 28 | 43 | 11 | 11 | 3600 | 0.06 | 13.8 | 3500 | Ø8-Ø180 | Ø62-Ø170 |
| 02SK-08 | 200 | 76.5 | 160 | 176 | 58 | 5 | 3-M10 | 82 | 28 | 43 | 11 | 11 | 3600 | 0.07 | 15.5 | 3200 | Ø8-Ø180 | Ø62-Ø170 |
| 02SK-09 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 | 96 | 32 | 50 | 12 | 15 | 3900 | 0.16 | 22 | 2900 | Ø11-Ø220 | Ø70-Ø210 |
| 02SK-10 | 273 | 87 | 230 | 250 | 87 | 8.5 | 3-M12 | 100 | 35 | 50 | 12 | 19.5 | 4800 | 0.26 | 29.7 | 2500 | Ø12-Ø260 | Ø80-Ø250 |
| 02SK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 | 114 | 40 | 56 | 14 | 21 | 5700 | 0.58 | 43.5 | 2200 | Ø15-Ø300 | Ø90-Ø290 |
