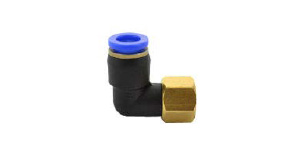

Female Elbow Quick Fitting Joint

Female Elbow Quick Fitting Joint one touch water and air fitting for injection mold
Model: 21SPLFL

more
  • Model 21SPLFL
  • Manufacturer Code SPLFL/PLFL
Brand
OIL FREE
OIL FREE
  • Serie

    Quick Coupling

  • Connector

    Hose

    Female Thread

  • Shape

    Elbow

  • Flow

    Normal

  • Material

    Brass

    Plastic

Swipe
Female Elbow Quick Fitting Joint drawing
Code Matching Tube O.D. Thread Size
D Nominal R(PT)
21SPLFL 4 01PT 1/8PT
02PT 1/4PT
6 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
8 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
10 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
12 02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
