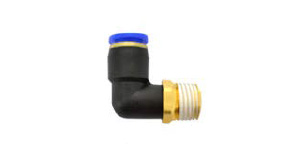

Male Elbow Quick Fitting Joint

Male Elbow Quick Fitting Joint one touch water and air fitting for injection mold
Model: 21SPLL

more
  • Model 21SPLL
  • Manufacturer Code SPLL/PLL
Brand
OIL FREE
OIL FREE
  • Serie

    Quick Coupling

  • Connector

    Hose

    Male Thread

  • Shape

    Elbow

  • Flow

    Normal

  • Material

    Brass

    Plastic

Swipe
Male Elbow Quick Fitting Joint drawing
Model Matching Tube O.D. Thread Size
D Nominal R(PT)
21SPLL 4 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
6 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
8 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
10 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
12 02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
16 03PT 3/8PT
04PT 1/2PT
06PT 3/4PT
