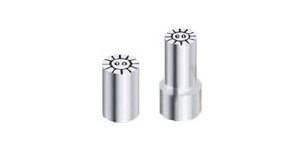

Die Cast Date Marking Pin

Die Cast mold date marking pin, can withstand high temperature. Available in normal type with screw hole, and flange type.

Models: 21ATDC / 21BTDC

more
  • Model 21ATDC/21BTDC
  • Manufacturer Code ATDC/BTDC
Brand
OIL FREE
OIL FREE
  • Type

    Date Mark

Swipe

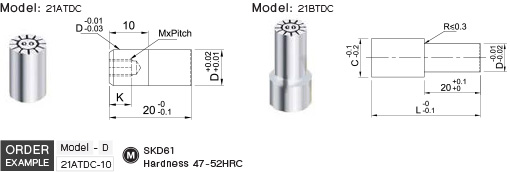

Die Cast Date Marking Pin drawing
Model D K M
21ATDC 8 6 M3
10 7.5 M4
12 9 M6
Swipe
Model D L
0.1mm increments
C
21BTDC 8 30-100 13
10 15
12 17
Swipe
