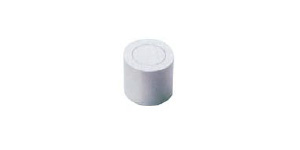

Air Valve

Air Valve for ejection of workpiece in plastic injection mold.
Designed specially for deep-draw molding (i.e. bucket shapes) or other thin wall parts.
Model: 21GVJ

more
  • Model 21GVJ
  • Manufacturer Code GVJ/VA
Brand
OIL FREE
OIL FREE
  • Type

    Air Valve

Swipe

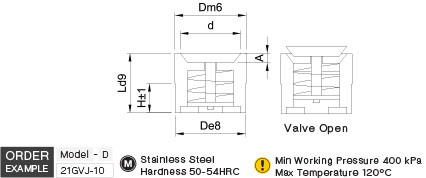

Air Valve drawing
Model D d L A H
21GVJ 6 5.2 12 1.5 7
8 6.5 12 1.5 7
10 8.0 12 2.0 7
12 10.0 12 2.5 7
16 13.0 20 3.0 12
20 17.0 20 3.5 12
