ฺBoride Mounted Points Shank 3mm.

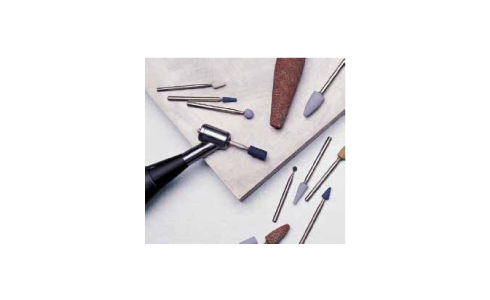

Boride red & blue standard mounted points. Manufactured from premium aluminum oxide and special bonding materials to assure rapid stock removal and long life. Boride standard lines of mounted abrasive points are designed specifically for mold and die work.
more
- Manufacturer Code Red/Blue/Mounted Point
Swipe

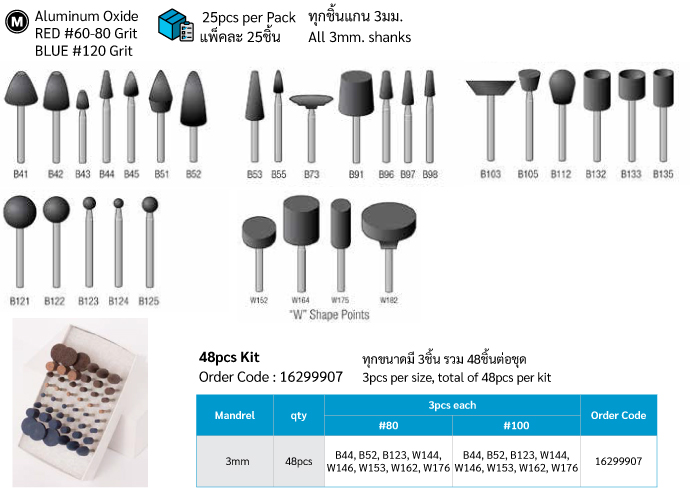

| Shape | Diameter X Thickness |
Order Code | |
| RED | BLUE | ||
| B41 | 5/8 x 5/8 | - | 16204133 |
| B44 | 7/32 x 3/8 | 16204431 | 16204433 |
| B45 | 3/16 x 5/16 | 16204531 | 16204533 |
| B52 | 3/8 x 3/4 | 16205231 | 16205233 |
| B53 | 1/4 x 5/8 | 16205331 | 16205333 |
| B55 | 1/8 x 1/4 | 16205531 | 16205533 |
| B91 | 1/2 x 5/8 | - | 16209184 |
| B96 | 1/8 x 1/4 | 16209631 | 16209633 |
| B97 | 1/8 x 3/8 | 16209731 | 16209733 |
| B98 | 3/32 x 1/4 | 16209831 | 16209833 |
| B123 | 3/16 x 3/16 | 16212331 | 16212333 |
| B124 | 1/8 x 1/8 | 16212431 | 16212433 |
| B132 | 3/8 x 1/2 | 16213231 | 16213233 |
| B133 | 3/8 x 3/8 | 16213331 | 16213333 |
| B135 | 1/4 x 1/2 | 16213531 | 16213533 |
| W142 | 3/32 x 1/4 | 16214231 | 16214233 |
| W144 | 1/8 x 1/4 | 16214431 | 16214433 |
| W145 | 1/8 x 3/8 | 16214531 | 16214533 |
| W146 | 1/8 x 1/2 | 16214631 | 16214633 |
| W149 | 5/32 x 1/4 | 16214931 | 16214933 |
| W153 | 3/16 x 3/8 | 16215331 | 16215333 |
| W154 | 3/16 x 1/2 | 16215431 | 16215433 |
| W160 | 1/4 x 1/4 | 16216031 | 16216033 |
| W162 | 1/4 x 3/8 | 16216231 | 16216233 |
| W163 | 1/4 x 1/2 | 16216331 | 16216333 |
| W171 | 5/16 x 3/4 | - | 16217133 |
| W176 | 3/8 x 1/2 | 16217631 | 16217633 |
