Hex Key Extension Elbow

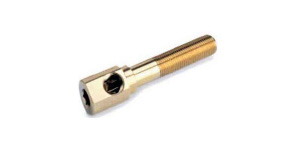

Hex Key Extension Elbow brass fitting for plastic injection mold cooling.
Model: 21EKL
more
- Model 21EKL
- Manufacturer Code EKL
View Online
Download
Swipe

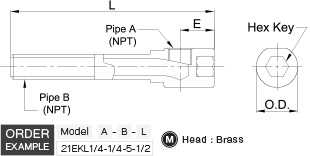

| Model | A (NPT) |
B (NPT) |
L (Inch) |
E (Inch) |
O.D. (Inch) |
Hex Key (Inch) |
|||||||
| 21EKL | 1/16 | 1/16 | 2-1/2 | 4 | 5-1/2 | 7 | 8-1/2 | 10 | 11-1/2 | 13 | 0.531 | 0.552 | 1/4 |
| 1/8 | 1/8 | 0.580 | 0.615 | 5/16 | |||||||||
| 1/4 | 1/14 | 0.660 | 0.860 | 3/8 | |||||||||
| 3/8 | 3/8 | 0.780 | 0.985 | 1/2 | |||||||||
| 1/2 | 1/2 | 0.940 | 1.235 | 1/2 | |||||||||
