Bell Crank Lifter Parts (Shaft)

Bell Crank Lifter Parts (Shaft) standard bell crank component for die transferring.
One Section Shaft Model: 25SBCHA
Two Sections Shaft Model: 25SBCHB
Three Sections Shaft Model: 25SBCHC

more
  • Model 25SBCHA/25SBCHB/25SBCHC
  • Manufacturer Code SBCHA/SBCHB/SBCHC/SBSHA/SBSHB/SBSHC
Brand
OIL FREE
OIL FREE
  • Type

    Bell Crank

Swipe

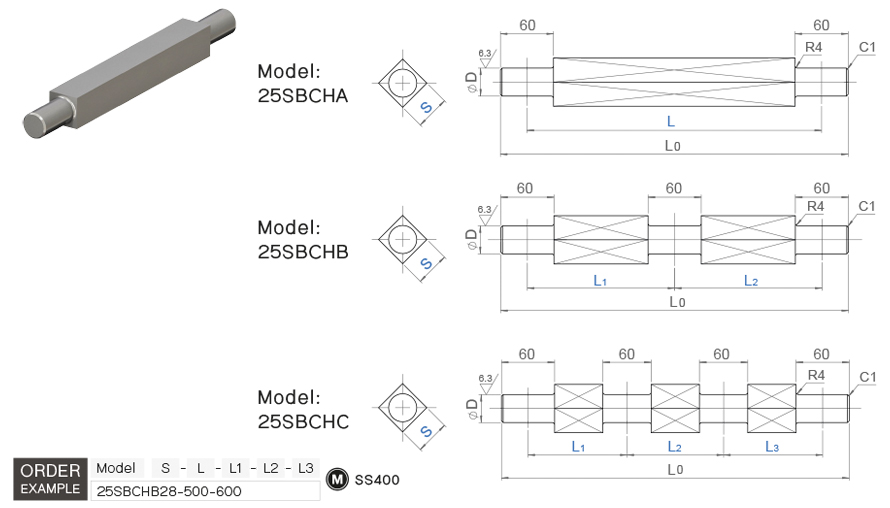

Bell Crank Lifter Parts (Shaft) drawing
Model S Tolerance L, L1, L2, L3 D Tolerance L0
25SBCHA
25SBCHB
25SBCHC
28 0
-0.2
1mm increments
The sum must not exceed L0
25 -0.065
-0.117
25SBSHA
L0 ≤ 1600

25SBSHB & 25SBSHC
L0 ≤ 2000
38 35
50 45 -0.080
-0.142
