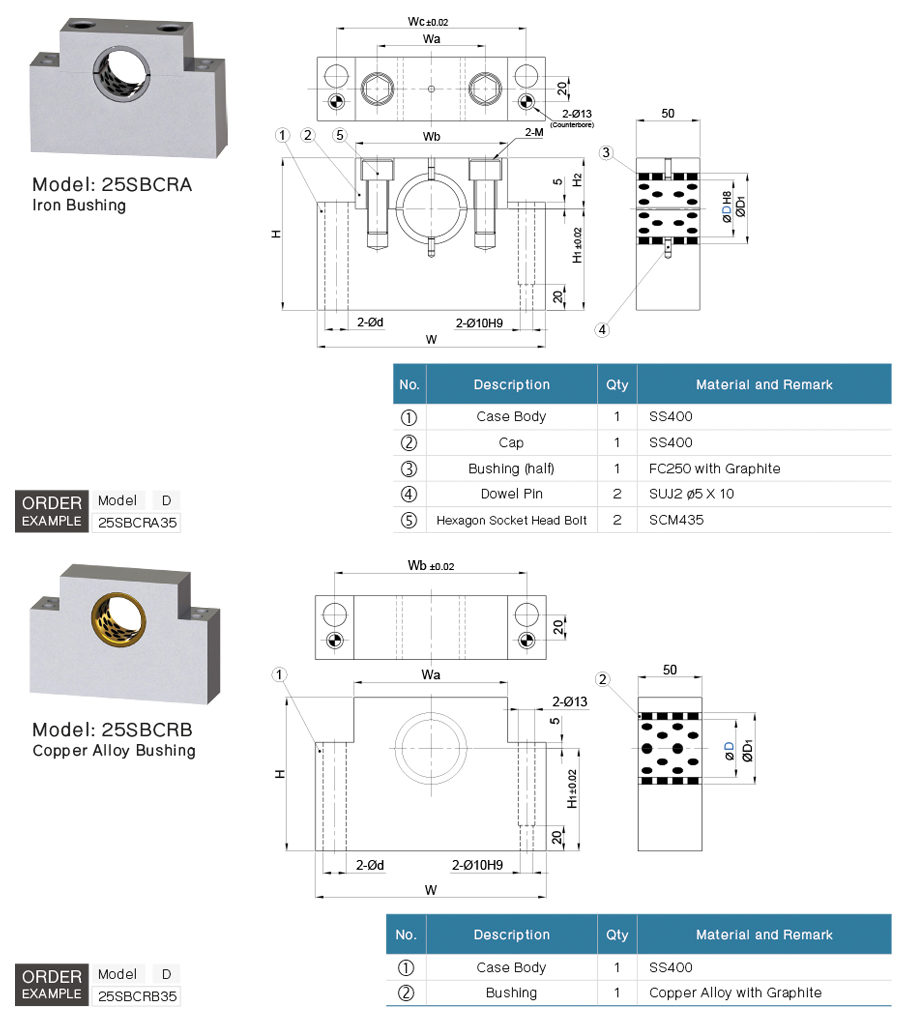

Bell Crank Lifter Parts (Bearing Set)
Bell Crank Lifter Parts (Bearing Set) standard bell crank component for die transferring.
Iron Bushing Model: 25SBCRA
Copper Alloy Bushing Model: 25SBCRB
more
- Model 25SBCRA/25SBCRB
- Manufacturer Code SBCRA/SBCRB/BCBRA/BCBRB
View Online
Download
Swipe
| Model | D H8 | W | Wa | Wb | Wc | H | H1 | H2 | D1 | d | M | |
| 25SBCRA | 25 | +0.033 0 |
130 | 80 | 55 | 105 | 85 | 60 | 25 | 33 | 13 | 12 |
| 35 | +0.039 0 |
170 | 110 | 75 | 140 | 105 | 70 | 35 | 44 | 18 | 16 | |
| 45 | 180 | 120 | 85 | 150 | 120 | 80 | 40 | 56 | 18 | 16 | ||
Swipe
| Model | D Tolerance | W | Wa | Wb | H | H1 | D1 | d | |
| 25SBCRB | 25 | +0.025 0 |
130 | 80 | 105 | 85 | 60 | 33 | 13 |
| 35 | +0.030 0 |
170 | 110 | 140 | 105 | 70 | 44 | 18 | |
| 45 | 180 | 120 | 150 | 120 | 80 | 56 | 18 | ||
