COMBI-MAG Multi Function NC Drill
COMBI-MAG Multi Function NC Drill combine 5 operations in 1 NC Spotting Drill. The combination NC Drills are more suitable in chamfering usage than regular NC Spotting Drill. The tool can save both tool-change time and cost in machining production.

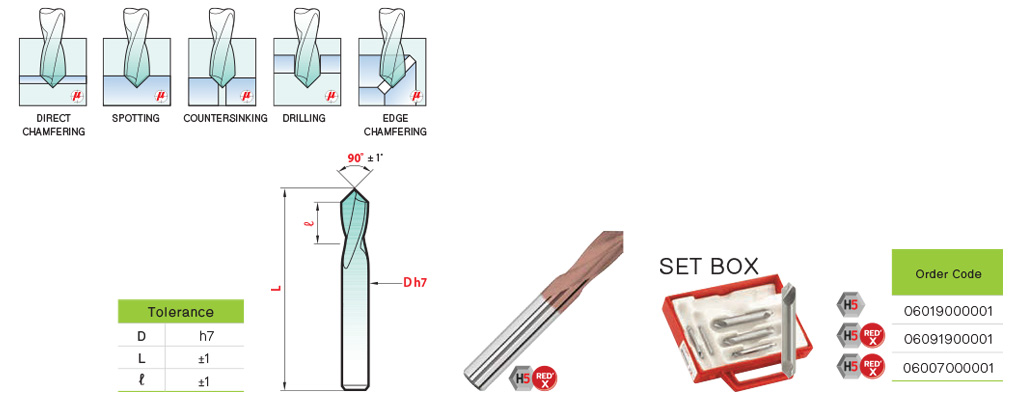

Usages : Direct Chamfer, Spotting, Countersinking, Drilling, Edge Chamfer
more
- Model 06007
- Manufacturer Code 007
View Online
Download
Swipe
| D | L | ℓ | T (Web Thickness) |
Order Code | |
| HSS+Red’X | |||||
| mm | inch | Model 06007 | |||
| 3 | 50 | 6 | 0.3 | 06007030000 | |
| 3.17 | 1/8” | 50 | 6 | 0.3 | 06007031700 |
| 4 | 52 | 8 | 0.4 | 06007040000 | |
| 4.76 | 3/16” | 60 | 9 | 0.5 | 06007047600 |
| 5 | 60 | 10 | 0.5 | 06007050000 | |
| 6 | 66 | 12 | 0.6 | 06007060000 | |
| 6.35 | 1/4” | 66 | 12 | 0.6 | 06007063500 |
| 7.93 | 5/16” | 79 | 14 | 0.8 | 06007079300 |
| 8 | 79 | 14 | 0.8 | 06007080000 | |
| 9.52 | 3/8” | 89 | 16 | 1 | 06007095200 |
| 10 | 89 | 16 | 1 | 06007100000 | |
| 12 | 102 | 18 | 1.2 | 06007120000 | |
| 12.7 | 1/2” | 102 | 19 | 1.3 | 06007127000 |
| 14 | 115 | 21 | 1.4 | 06007140000 | |
| 15.87 | 5/8” | 115 | 24 | 1.6 | 06007158700 |
| 16 | 115 | 24 | 1.6 | 06007160000 | |
Swipe
| Order Code | Type | Angle | Includes |
| 1 pc each | |||
| 06019000001 | Duo-Mag | 90° | Ø3 / 4 / 6 / 8 / 10 / 12 |
| 06091900001 | |||
| 06007000001 | Combi-Mag | Ø4 / 5 / 6 / 8 / 10 / 12 |
