Embed Lifter Unit SFLG

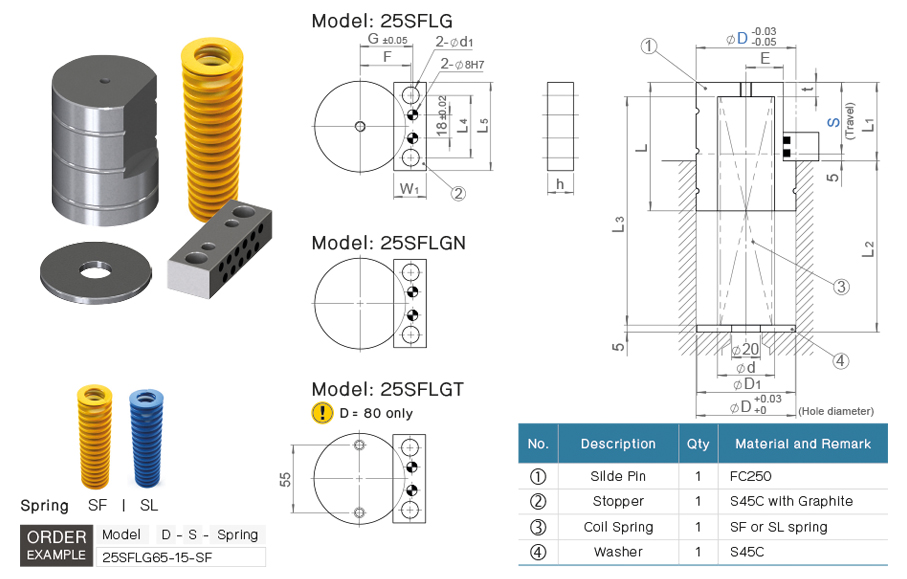

Embed Lifter Unit for metal stamping die transfer system.
Select holes type:
- 25SFLG (standard)
- 25SFLGN (no hole)
- 25SFLGT (tapped holes)
Spring Color Code: SF (yellow), SL (blue)
more
- Model 25SFLG/25SFLGN/25SFLGT
- Manufacturer Code SFLG/SFLGN/SFLGT/SGFL/SGFLN/SGFLT
View Online
Download
Swipe
| Model | D | Stroke S |
Spring | L | L1 | t | d | E | F | G | Spring OD |
| 25SFLG 25SFLGN 25SFLGT |
65 | 15 | SF SL |
90 | 55 | 10 | 37 | 25 | 39 | 40 | 35 |
| 80 | 40 | 140 | 85 | 15 | 53 | 32 | 49 | 49 | 50 | ||
| 60 | 180 | 125 | 30 |
Swipe
| D | Stroke S |
SF Type | SL Type | ||||||||||||
| L2 | L3 | Spring | Initial | Final | L2 | L3 | Spring | Initial | Final | ||||||
| Free Length | Length | Load (N) | Length | Load (N) | Free Length | Length | Load (N) | Length | Load (N) | ||||||
| 65 | 15 | 115 | 155 | 175 | 155 | 219 | 105 | 767 | 115 | 155 | 175 | 155 | 464 | 105 | 1623 |
| 80 | 40 | 165 | 230 | 250 | 230 | 314 | 150 | 1569 | 165 | 230 | 250 | 230 | 662 | 150 | 3311 |
| 60 | 195 | 285 | 300 | 285 | 196 | 165 | 1764 | 240 | 330 | 350 | 330 | 473 | 210 | 3311 | |
