H-Type Lifter Unit

H-Type Lifter Unit for metal stamping die transfer system.

Model: 25SHGF

more
  • Model 25SHGF
  • Manufacturer Code SHGF/HLSGF
Brand
OIL FREE
OIL FREE
  • Type

    Lifter Unit

Swipe

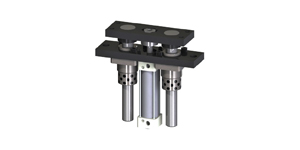

H-Type Lifter Unit drawing
Model Cylinder
Inner D
Stroke
S
A B Rc L L1 L2 L3 L4 W W1
25SHGF 40 50 88 52 1/4 270 240 215 190 120 75 45
75
100
125
150
175
200
225
250
275
300
63 50 98 75 3/8 290 260 235 215 145 90 70
75
100
125
150
175
200
225
250
275
300
