H-Type Lifter Unit

H-Type Lifter Unit for metal stamping die transfer system.

Model: 25SHGC

more
  • Model 25SHGC
  • Manufacturer Code SHGC/HLSGC
Brand
OIL FREE
OIL FREE
  • Type

    Lifter Unit

Swipe

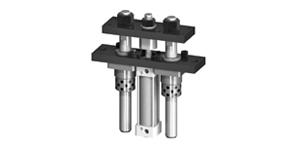

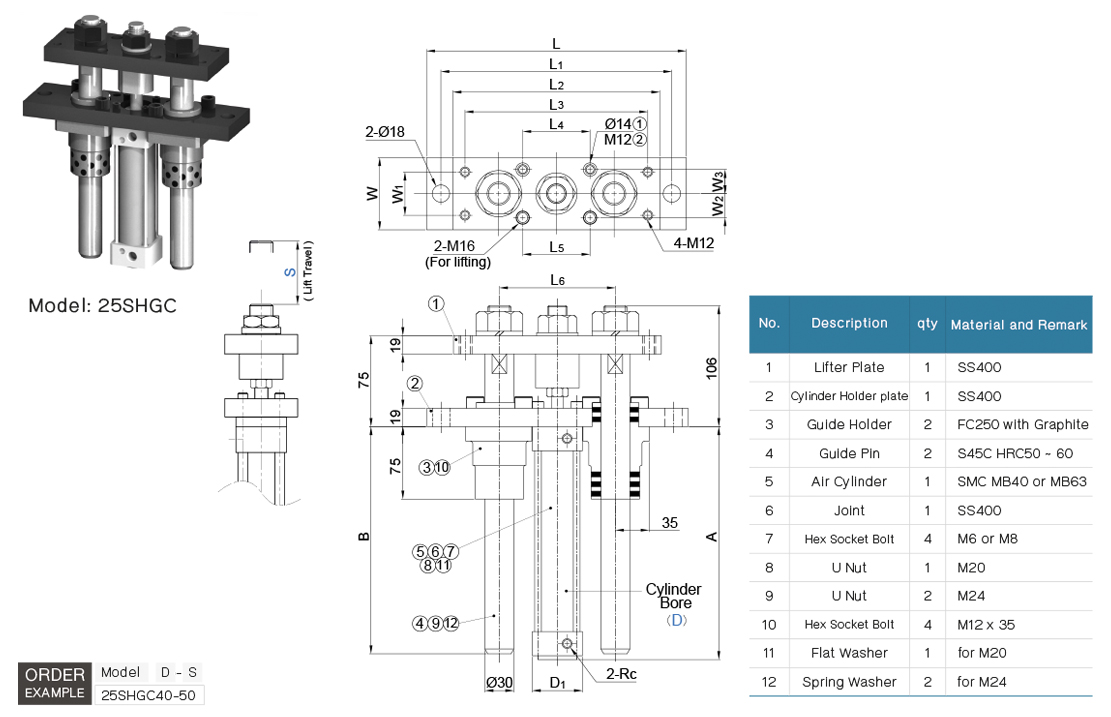

H-Type Lifter Unit drawing
Model Cylinder
Inner D		 Stroke
S		 A B Rc D1 L L1 L2 L3 L4 L5 L6 W W1 W2 W3
25SHGC 40 50 138 130 1/4 52 270 240 215 190 66 60 120 75 45 25 28
75 163 155
100 188 180
125 213 205
150 238 230
175 263 255
200 288 280
225 313 305
250 338 330
275 363 355
300 388 380
63 50 148 110 3/8 75 290 260 235 215 96 70 145 90 70 30 32
75 173 135
100 198 160
125 223 205
150 248 230
175 273 255
200 298 280
225 323 305
250 348 330
275 373 355
300 398 380
