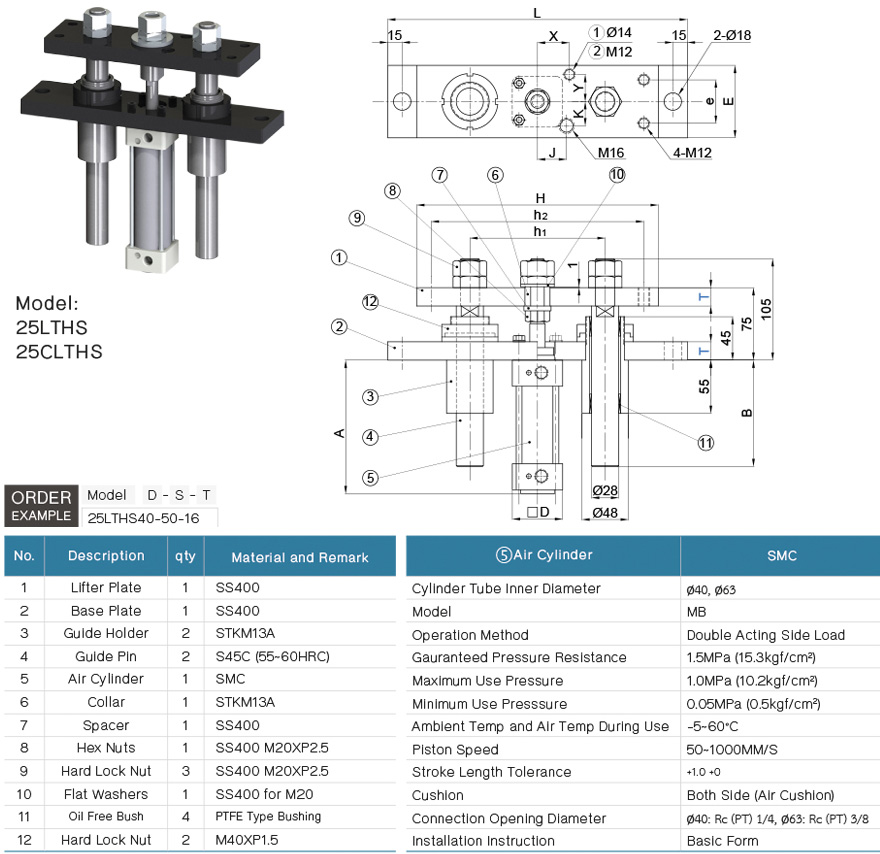

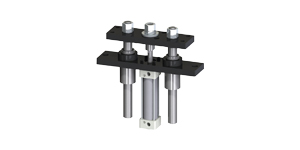

Lifter Units for metal stamping die transfer system.
Standard Model: 25LTHS
Compact Model: 25CLTHS
Model | Cylinder Inner D |
Stroke | T | H | h1 | h2 | L | E | e | D | J | K | X | Y | A | B |
25LTHS (Standard) |
40 | 50 | 16 19 |
250 | 160 | 220 | 310 | 75 | 45 | 52 | 30 | 25 | 33 | 28 | 138 | 110 |
75 | 163 | 135 | ||||||||||||||
100 | 188 | 160 | ||||||||||||||
63 | 50 | 16 19 |
270 | 160 | 240 | 330 | 90 | 70 | 75 | 35 | 30 | 48 | 32 | 148 | 110 | |
75 | 173 | 135 | ||||||||||||||
100 | 198 | 160 | ||||||||||||||
25CLTHS (Compact) |
40 | 50 | 16 19 |
215 | 115 | 185 | 270 | 75 | 45 | 52 | 30 | 25 | 33 | 28 | 138 | 110 |
75 | 163 | 135 | ||||||||||||||
100 | 188 | 160 | ||||||||||||||
63 | 50 | 16 19 |
240 | 135 | 210 | 295 | 90 | 70 | 75 | 35 | 30 | 48 | 32 | 148 | 110 | |
75 | 173 | 135 | ||||||||||||||
100 | 198 | 160 |
