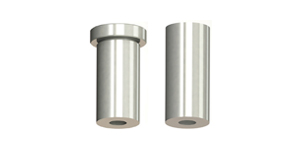

X-Long Punch Guide Bush
X-Long Punch Guide Bush, Material SKD11 60~63HRC
Shoulder Type Shape A: 25SLMHG
Straight Type Shape A: 25SLMSG
*For other shape and material please contact us
more
View Online
Download
Swipe
| Order Code | L | P 0.01 mm increment |
B 0.1 mm increment |
b | d | H | |||||
| Model | D | m5 | n5 | ||||||||
| (Shoulder) 25SLMHG (Straight) 25SLMSG |
6 | +0.009 +0.004 |
+0.013 +0.008 |
16 | 20 | 25 | 1.00 – 2.50 | 2 ≤ B ≤ b and B ≤ Px5 |
12 | 3.4 | 9 |
| 8 | +0.012 +0.006 |
+0.016 +0.010 |
16 | 20 | 25 | 1.00 – 3.50 | 14 | 4.4 | 11 | ||
| 10 | 16 | 20 | 25 | 2.00 – 5.50 | 6.4 | 13 | |||||
