Double-Stepped Punch Guide Bush
Double-Stepped Punch Guide Bush, Material SKD11 60~63HRC

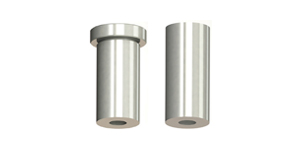

Shoulder Type Shape A: 25FMHG
Straight Type Shape A: 25FMSG
*For other shape and material please contact us
more
View Online
Download
Swipe
| Order Code | L | P 0.01 mm increment |
G 0.01 mm increment |
B | H | ||||
| Code | D | ||||||||
| (Shoulder) 25FMHG (Straight) 25FMSG |
6 | 10 | 13 | 16 | 20 | 0.80 – 3.38 | 3.00 – 3.40 | 3 | 9 |
| 8 | 10 | 13 | 16 | 20 | 0.80 – 4.38 | 3.00 – 4.40 | 4 | 11 | |
