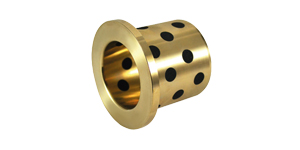

บุชทองเหลืองมีบ่า ออยฟรี
Oil Free Flange Bush (Universal)
บูชชิ่งทองเหลืองสำหรับแม่พิมพ์ปั๊มโลหะ ออยฟรี รุ่น 25FSBW สำหรับใช้งานในเครื่องจักร และ แม่พิมพ์
more
- Model 25FSBW
- Manufacturer Code FSBW/MPFZ/SOBF/SPF
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Model | d E7 | D r6 | L | D1 | t | ||||||||||||||
| 25FSBW | 5 | +0.032 +0.020 |
9 | +0.028 +0.019 |
10 | 12 | 14 | 2 | |||||||||||
| 6 | 10 | 10 | 12 | 15 | 16 | ||||||||||||||
| 8 | +0.040 +0.025 |
12 | +0.034 +0.023 |
10 | 12 | 15 | 20 | 20 | |||||||||||
| 10 | 14 | 10 | 12 | 15 | 20 | 25 | 30 | 22 | |||||||||||
| 12 | +0.050 +0.032 |
18 | 10 | 12 | 15 | 20 | 25 | 30 | 25 | 3 | |||||||||
| 13 | 19 | 10 | 12 | 15 | 17 | 20 | 25 | 30 | 26 | ||||||||||
| 14 | 20 | +0.041 +0.028 |
15 | 20 | 25 | 30 | 27 | ||||||||||||
| 15 | 21 | 10 | 12 | 15 | 20 | 25 | 30 | 28 | |||||||||||
| 16 | 22 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | 29 | ||||||||||
| 18 | 24 | 15 | 20 | 25 | 30 | 35 | 40 | 32 | |||||||||||
| 20 | +0.061 +0.040 |
30 | 15 | 20 | 25 | 30 | 35 | 40 | 40 | 5 | |||||||||
| 25 | 35 | +0.050 +0.034 |
15 | 20 | 25 | 30 | 35 | 40 | 50 | 45 | |||||||||
| 30 | 40 | 20 | 25 | 30 | 35 | 40 | 50 | 50 | |||||||||||
| 31.5 | +0.075 +0.050 |
20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| 35 | 45 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | |||||||||||
| 40 | 50 | 20 | 25 | 30 | 35 | 40 | 50 | 65 | |||||||||||
| 45 | 55 | +0.060 +0.041 |
20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | |||||||||
| 50 | 60 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 75 | ||||||||||
| 55 | +0.090 +0.060 |
65 | 30 | 35 | 40 | 60 | 80 | ||||||||||||
| 60 | 75 | +0.062 +0.043 |
30 | 35 | 40 | 50 | 60 | 80 | 90 | 7.5 | |||||||||
| 70 | 85 | +0.073 +0.051 |
50 | 60 | 80 | 105 | |||||||||||||
| 75 | 90 | 60 | 80 | 110 | |||||||||||||||
| 80 | 100 | 60 | 80 | 100 | 120 | 10 | |||||||||||||
| 90 | +0.107 +0.072 |
110 | +0.076 +0.054 |
60 | 80 | 100 | 130 | ||||||||||||
| 100 | 120 | 80 | 100 | 150 | |||||||||||||||
| 120 | 140 | +0.088 +0.063 |
80 | 100 | 170 | ||||||||||||||
