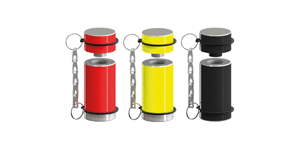

ชุดสโตรคเอ็นบล็อค
Stroke End Block Sets
ชุดสโตรคเอ็นบล็อค สำหรับแม่พิมพ์ปั๊มโลหะ เลือกสีแดง, เหลือง, ดำ ในชุดมาพร้อมสกรู
สำหรับการสั่งครบชุด Model: 25SBS
more
- Model 25SBS
- Manufacturer Code SBS
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Model | D | L 0.1mm. Increment |
Color (2) | T 5mm. Increment |
Color (1) | MxP | d | d1 | ℓ | ℓ1 |
| 25SBS 25SBN 25SEC |
14 | 22.0 – 80.0 | R (Red) Y(Yellow) N(Normal) |
10 – 50 | R (Red) Y(Yellow) N(Normal) |
M4 x 0.7 | 7 | 8 | 10 | 10 |
| 80.1 – 100.0 | 35 | |||||||||
| 16 | 22.0 – 80.0 | M4 x 0.7 | 7 | 8 | 10 | 10 | ||||
| 80.1 – 100.0 | 35 | |||||||||
| 18 | 22.0 – 80.0 | M5 x 0.8 | 8.5 | 9.5 | 10 | 10 | ||||
| 80.1 – 100.0 | 35 | |||||||||
| 20 | 22.0 – 80.0 | M6 x 1.0 | 10 | 11 | 11 | 9 | ||||
| 80.1 – 100.0 | 34 | |||||||||
| 100.1 – 120.0 | 54 | |||||||||
| 25 | 22.0 – 80.0 | M8 x 1.25 | 13 | 14 | 12 | 8 | ||||
| 80.1 – 100.0 | 14 | 31 | ||||||||
| 100.1 – 120.0 | 51 | |||||||||
| 120.1 – 170.0 | 76 | |||||||||
| 32 | 22.0 – 80.0 | M8 x 1.25 | 13 | 14 | 12 | 8 | ||||
| 80.1 – 100.0 | 14 | 31 | ||||||||
| 100.1 – 120.0 | 51 | |||||||||
| 120.1 – 170.0 | 76 | |||||||||
| 38 | 25.0 – 80.0 | M10 x 1.5 | 16 | 17 | 16 | 9 | ||||
| 80.1 – 100.0 | 17 | 33 | ||||||||
| 100.1 – 120.0 | 53 | |||||||||
| 120.1 – 200.0 | 83 | |||||||||
| 50 | 25.0 – 80.0 | 10 – 100 | M12 x 1.75 | 18 | 20 | 18 | 7 | |||
| 80.1 – 100.0 | 20 | 30 | ||||||||
| 100.1 – 120.0 | 50 | |||||||||
| 120.1 – 200.0 | 80 | |||||||||
| 60 | 25.0 – 80.0 | M12 x 1.75 | 18 | 20 | 18 | 7 | ||||
| 80.1 – 100.0 | 20 | 30 | ||||||||
| 100.1 – 120.0 | 50 | |||||||||
| 120.1 – 200.0 | 80 |
