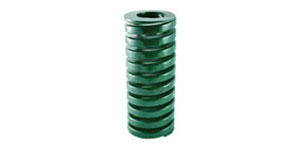

สปริงแม่พิมพ์ สีเขียวเข้ม รับน้ำหนักสูง รุ่น 19SH
สปริงขดสปริงแม่พิมพ์ ออกแบบมาสำหรับแม่พิมพ์ปั๊ม แข็งแรงและอายุการใช้งานสูง สามารถนำไปใช้ร่วมกับงานอื่นๆได้เช่น ใช้ในเครื่องจักรต่างๆ

สำหรับใช้ในอุตสาหกรรมผลิตชิ้นส่วนรถยนต์ และ อุตสาหกรรมปั๊มชิ้นส่วนโลหะอื่นๆที่ต้องการสปริงที่ได้มาตรฐานสูง แข็งแรงเป็นที่ยอมรับจากผู้ผลิตรถยนต์ชั้นนำ

JIS Standard

more
  • Model 19SH
  • Manufacturer Code SH/CH/SWH/DH/ASH/TH
ยี่ห้อ
CORE
CORE
เลื่อนได้
สปริงสีเขียวเข้ม (Heavy Load) drawing
D L d Spring
Constant
(kgf/mm)		 300,000 times 500,000 times 1,000,000 times
D L d Spring
Constant
(kgf/mm)		 300,000 times 500,000 times 1,000,000 times
24% Deflection Load
N (kgf)		 21.6% Deflection Load
N (kgf)		 19.5% Deflection Load
N (kgf)		 24% Deflection Load
N (kgf)		 21.6% Deflection Load
N (kgf)		 19.5% Deflection Load
N (kgf)
6 15 3 3.90 3.6 137
(14)		 3.2 123
(13)		 2.9 110
(11)		 25 25 12.5 31.20 6.0 1833
(187)		 5.4 1650
(168)		 4.8 1466
(150)
20 2.90 4.8 4.3 3.8 30 25.97 7.2 6.5 5.8
25 2.30 6.0 5.4 4.8 35 22.38 8.4 7.6 6.7
30 1.90 7.2 6.5 5.8 40 19.47 9.6 8.6 7.7
35 1.70 8.4 7.6 6.7 45 17.40 10.8 9.7 8.6
40 1.50 9.6 8.6 7.7 50 15.58 12.0 10.8 9.6
45 1.30 10.8 9.7 8.6 55 14.20 13.2 11.9 10.6
50 1.20 12.0 10.8 9.6 60 12.98 14.4 13.0 11.5
55 1.10 13.2 11.9 10.6 65 12.00 15.6 14.0 12.5
60 1.00 14.4 13.0 11.5 70 11.13 16.8 15.1 13.4
8 10 4 8.80 2.4 206
(21)		 2.2 185
(19)		 1.9 165
(17)		 75 10.40 18.0 16.2 14.4
15 5.86 3.6 3.2 2.9 80 9.73 19.2 17.3 15.4
20 4.40 4.8 4.3 3.8 90 8.65 21.6 19.4 17.3
25 3.52 6.0 5.4 4.8 100 7.79 24.0 21.6 19.2
30 2.93 7.2 6.5 5.8 125 6.23 30.0 27.0 24.0
35 2.51 8.4 7.6 6.7 150 5.20 36.0 32.4 28.8
40 2.20 9.6 8.6 7.7 175 4.46 42.0 37.8 33.6
45 1.95 10.8 9.7 8.6 200 3.90 48.0 43.2 38.4
50 1.76 12.0 10.8 9.6 27 25 13.5 36.40 6.0 2146
(219)		 5.4 1931
(197)		 4.8 1717
(175)
55 1.60 13.2 11.9 10.6 30 30.41 7.2 6.5 5.8
60 1.47 14.4 13.0 11.5 35 26.20 8.4 7.6 6.7
65 1.35 15.6 14.0 12.5 40 22.81 9.6 8.6 7.7
70 1.26 16.8 15.1 13.4 45 20.30 10.8 9.7 8.6
75 1.17 18.0 16.2 14.4 50 18.25 12.0 10.8 9.6
80 1.10 19.2 17.3 15.4 55 16.50 13.2 11.9 10.6
90 0.98 21.6 19.4 17.3 60 15.20 14.4 13.0 11.5
100 0.87 24.0 21.6 19.2 65 14.00 15.6 14.0 12.5
10 10 5 12.27 2.4 294
(30)		 2.2 265
(27)		 1.9 235
(24)		 70 13.03 16.8 15.1 13.4
15 8.18 3.6 3.3 2.9 75 12.10 18.0 16.2 14.4
20 6.25 4.8 4.3 3.8 80 11.40 19.2 17.3 15.4
25 5.00 6.0 5.4 4.8 90 10.13 21.6 19.4 17.3
30 4.16 7.2 6.5 5.8 100 9.12 24.0 21.6 19.2
35 3.57 8.4 7.6 6.7 125 7.30 30.0 27.0 24.0
40 3.15 9.6 8.6 7.7 150 6.08 36.0 32.4 28.8
45 2.77 10.8 9.7 8.6 175 5.21 42.0 37.8 33.6
50 2.50 12.0 10.8 9.6 200 4.56 48.0 43.2 38.4
55 2.27 13.2 11.9 10.6 30 25 15 45.00 6.0 2646
(270)		 5.4 2381
(243)		 4.8 2117
(216)
60 2.08 14.4 13.0 11.5 30 37.50 7.2 6.5 5.8
65 1.92 15.6 14.0 12.5 35 32.26 8.4 7.6 6.7
70 1.79 16.8 15.1 13.4 40 28.12 9.6 8.6 7.7
75 1.67 18.0 16.2 14.4 45 25.00 10.8 9.7 8.6
80 1.56 19.2 17.3 15.4 50 22.50 12.0 10.8 9.6
90 1.39 21.6 19.4 17.3 55 20.40 13.2 11.9 10.6
100 1.25 24.0 21.6 19.2 60 18.75 14.4 13.0 11.5
125 1.00 30.0 27.0 24.0 65 17.30 15.6 14.0 12.5
12 20 6 8.90 4.8 421
(43)		 4.3 379
(38)		 3.8 337
(34)		 70 16.07 16.8 15.1 13.4
25 7.10 6.0 5.4 4.8 75 15.00 18.0 16.2 14.4
30 5.97 7.2 6.5 5.8 80 14.06 19.2 17.3 15.4
35 5.11 8.4 7.6 6.7 90 12.50 21.6 19.4 17.3
40 4.47 9.6 8.6 7.7 100 11.25 24.0 21.6 19.2
45 3.98 10.8 9.7 8.6 125 9.00 30.0 27.0 24.0
50 3.58 12.0 10.8 9.6 150 7.50 36.0 32.4 28.8
55 3.25 13.2 11.9 10.6 175 6.42 42.0 37.8 33.6
60 2.98 14.4 13.0 11.5 200 5.62 48.0 43.2 38.4
65 2.74 15.6 14.0 12.5 35 35 17.5 43.68 8.4 3597
(367)		 7.6 3237
(330)		 6.7 2878
(293)
70 2.54 16.8 15.1 13.4 40 38.22 9.6 8.6 7.7
75 2.37 18.0 16.2 14.4 45 33.98 10.8 9.7 8.6
80 2.21 19.2 17.3 15.4 50 30.58 12.0 10.8 9.6
90 1.98 21.6 19.4 17.3 55 27.80 13.2 11.9 10.6
100 1.78 24.0 21.6 19.2 60 25.48 14.4 13.0 11.5
125 1.42 30.0 27.0 24.0 65 23.53 15.6 14.0 12.5
14 20 7 12.05 4.8 578
(59)		 4.4 520
(53)		 3.8 462
(47)		 70 21.84 16.8 15.1 13.4
25 9.83 6.0 5.4 4.8 75 20.39 18.0 16.2 14.4
30 8.19 7.2 6.5 5.8 80 19.11 19.2 17.3 15.4
35 7.02 8.4 7.6 6.7 90 16.99 21.6 19.4 17.3
40 6.14 9.6 8.6 7.7 100 15.29 24.0 21.6 19.2
45 5.46 10.8 9.7 8.6 125 12.23 30.0 27.0 24.0
50 4.91 12.0 10.8 9.6 150 10.19 36.0 32.4 28.8
55 4.46 13.2 11.9 10.6 175 8.73 42.0 37.8 33.6
60 4.09 14.4 13.0 11.5 200 7.64 48.0 43.2 38.4
65 3.78 15.6 14.0 12.5 40 40 20 50.00 9.6 4704
(480)		 8.6 4234
(432)		 7.7 3763
(384)
70 3.51 16.8 15.1 13.4 45 44.44 10.8 9.7 8.6
75 3.27 18.0 16.2 14.4 50 40.00 12.0 10.8 9.6
80 3.07 19.2 17.3 15.4 55 36.36 13.2 11.9 10.6
90 2.72 21.6 19.4 17.3 60 33.33 14.4 13.0 11.5
100 2.46 24.0 21.6 19.2 65 30.77 15.6 14.0 12.5
125 1.97 30.0 27.0 24.0 70 28.57 16.8 15.1 13.4
16 20 8 15.68 4.8 755
(77)		 4.4 680
(690		 3.8 604
(62)		 75 26.67 18.0 16.2 14.4
25 12.83 6.0 5.4 4.8 80 25.00 19.2 17.3 15.4
30 10.69 7.2 6.5 5.8 90 22.22 21.6 19.4 17.3
35 9.16 8.4 7.6 6.7 100 20.00 24.0 21.6 19.2
40 8.02 9.6 8.6 7.7 125 16.00 30.0 27.0 24.0
45 7.12 10.8 9.7 8.6 150 13.33 36.0 32.4 28.8
50 6.41 12.0 10.8 9.6 175 11.42 42.0 37.8 33.6
55 5.83 13.2 11.9 10.6 200 10.00 48.0 43.2 38.4
60 5.34 14.4 13.0 11.5 225 8.89 54.0 48.6 43.2
65 4.93 15.6 14.0 12.5 250 8.00 60.0 54.0 48.0
70 4.58 16.8 15.1 13.4 275 7.27 66.0 59.4 52.8
75 4.28 18.0 16.2 14.4 300 6.67 72.0 64.8 57.6
80 4.01 19.2 17.3 15.4 50 50 25 62.50 12.0 7350
(750)		 10.8 6615
(675)		 9.6 5880
(600)
90 3.57 21.6 19.4 17.3 55 56.82 13.2 11.9 10.6
100 3.21 24.0 21.6 19.2 60 52.08 14.4 13.0 11.5
125 2.57 30.0 27.0 24.0 65 48.08 15.6 14.0 12.5
18 20 9 19.77 4.8 951
(97)		 4.4 856
(87)		 3.8 761
(78)		 70 44.64 16.8 15.1 13.4
25 16.16 6.0 5.4 4.8 75 41.67 18.0 16.2 14.4
30 13.47 7.2 6.5 5.8 80 39.06 19.2 17.3 15.4
35 11.54 8.4 7.6 6.7 90 34.72 21.6 19.4 17.3
40 10.10 9.6 8.6 7.7 100 31.25 24.0 21.6 19.2
45 8.98 10.8 9.7 8.6 125 25.00 30.0 27.0 24.0
50 8.08 12.0 10.8 9.6 150 20.83 36.0 32.4 28.8
55 7.34 13.2 11.9 10.6 175 17.85 42.0 37.8 33.6
60 6.73 14.4 13.0 11.5 200 15.62 48.0 43.2 38.4
65 6.21 15.6 14.0 12.5 225 13.89 54.0 48.6 43.2
70 5.77 16.8 15.1 13.4 250 12.50 60.0 54.0 48.0
75 5.39 18.0 16.2 14.4 275 11.36 66.0 59.4 52.8
80 5.05 19.2 17.3 15.4 300 10.41 72.0 64.8 57.6
90 4.50 21.6 19.4 17.3 350 8.93 84.0 75.6 67.2
100 4.04 24.0 21.6 19.2 60 60 30 75.00 14.4 10584
(1079)		 13.0 9526
(971)		 11.5 8467
(863)
125 3.23 30.0 27.0 24.0 70 64.28 16.8 15.1 13.4
20 20 10 24.55 4.8 1176
(120)		 4.4 1058
(108)		 3.7 941
(96)		 80 56.25 19.2 17.3 15.4
25 20.00 6.0 5.4 4.8 90 50.00 21.6 19.4 17.3
30 16.66 7.2 6.5 5.8 100 45.00 24.0 21.6 19.2
35 14.28 8.4 7.6 6.7 125 36.00 30.0 27.0 24.0
40 12.50 9.6 8.6 7.7 150 30.00 36.0 32.4 28.8
45 11.11 10.8 9.7 8.6 175 25.71 42.0 37.8 33.6
50 10.00 12.0 10.8 9.6 200 22.50 48.0 43.2 38.4
55 9.09 13.2 11.9 10.6 225 20.00 54.0 48.6 43.2
60 8.33 14.4 13.0 11.5 250 18.00 60.0 54.0 48.0
65 7.69 15.6 14.0 12.5 275 16.36 66.0 59.4 52.8
70 7.14 16.8 15.1 13.4 300 15.00 72.0 64.8 57.6
75 6.67 18.0 16.2 14.4 350 12.86 84.0 75.6 67.2
80 6.25 19.2 17.3 15.4 70 70 38.5 76.2 16.8 12557
(1280)		 15.1 11301
(1152)		 13.4 10046
(1024)
90 5.55 21.6 19.4 17.3 80 66.7 19.2 17.3 15.4
100 5.00 24.0 21.6 19.2 90 59.3 21.6 19.4 17.3
125 4.00 30.0 27.0 24.0 100 53.3 24.0 21.6 19.2
150 3.33 36.0 32.4 28.8 125 42.7 30.0 27.0 24.0
175 2.86 42.0 37.8 33.6 150 35.6 36.0 32.4 28.8
22 25 11 24.16 6.0 1421
(145)		 5.4 1279
(130)		 4.8 1137
(116)		 175 30.5 42.0 37.8 33.6
30 20.13 7.2 6.5 5.8 200 26.7 48.0 43.2 38.4
35 17.30 8.4 7.6 6.7 225 23.7 54.0 48.6 43.2
40 15.10 9.6 8.6 7.7 250 21.3 60.0 54.0 48.0
45 13.40 10.8 9.7 8.6 275 19.4 66.0 59.4 52.8
50 12.08 12.0 10.8 9.6 300 17.8 72.0 64.8 57.6
55 10.94 13.2 11.9 10.6 350 15.2 84.0 75.6 67.2
60 10.06 14.4 13.0 11.5
65 9.28 15.6 14.0 12.5
70 8.63 16.8 15.1 13.4
75 8.04 18.0 16.2 14.4
80 7.55 19.2 17.3 15.4
90 6.71 21.6 19.4 17.3
100 6.04 24.0 21.6 19.2
125 4.83 30.0 27.0 24.0
150 4.02 36.0 32.4 28.8
175 3.45 42.0 37.8 33.6
