โลเคทติ้งริง
Locating Ring
โลเคทติ้งริง วัสดุ S45C สำหรับแม่พิมพ์ฉีดพลาสติก
Models:

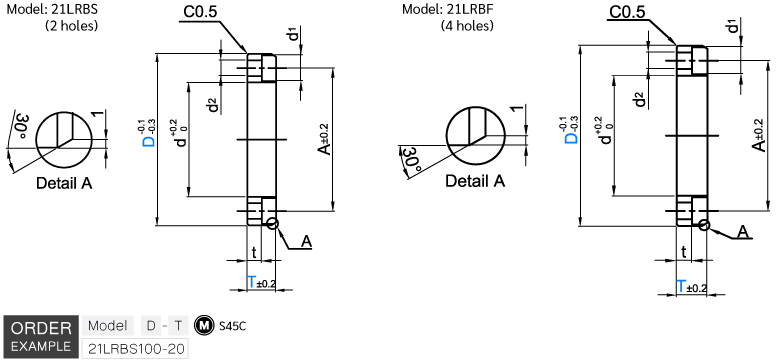

21LRBS (2 holes)
21LRBF (4 holes)
more
- Model 21LRBS/21LRBF
- Manufacturer Code LRBS/LRBF
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Model | D | T | t | d | A | Applicable Bolts |
Bolt hole | |
| d2 | d1 | |||||||
| 21LRBS (2 holes) 21LRBF (4 holes) |
60 | 10 | 5 | 40 | 50 | M5 | 5.5 | 9 |
| 15 | ||||||||
| 20 | ||||||||
| 25 | ||||||||
| 100 | 10 | 3 | 70 | 85 | M6 | 6.5 | 11 | |
| 15 | 8 | |||||||
| 20 | ||||||||
| 25 | ||||||||
| 30 | ||||||||
| 110 | *10 | 3 | 80 | 95 | ||||
| 15 | 8 | |||||||
| *20 | ||||||||
| *25 | ||||||||
| 120 | 10 | 3 | 90 | 105 | ||||
| 15 | 8 | |||||||
| 20 | ||||||||
| 25 | ||||||||
| 150 | 15 | 6 | 110 | 130 | M8 | 9 | 14 | |
| 20 | ||||||||
| 25 | ||||||||
| * ������� 21LRBS | ||||||||
| Available for 21LRBS only | ||||||||
