ลีดเดอร์พิน
Precision Leader Pin
SUJ2 58HRC~

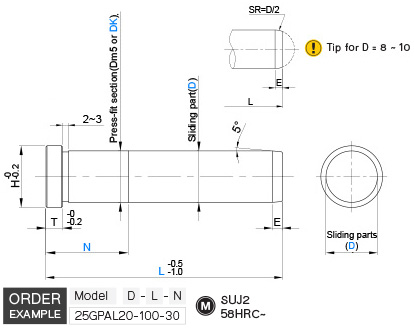

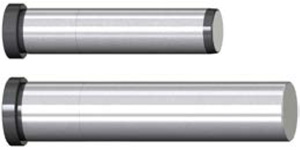

Oil Free เสาลีดเดอร์พิน Precision Leader Pin สำหรับแม่พิมพ์ฉีดพลาสติก
more
- Model 25GPAL
- Manufacturer Code GPAL/GPHL
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Model | D | L 5mm increment |
N 1mm increment |
T | H | E | Press-Fit Diameter |
||
| 25GPAL | 8 | -0.015 -0.020 |
30 ~ 80 | 5 ~ 60 | 5 | 11 | 3 | 8 | +0.012 +0.006 |
| 10 | 30 ~ 80 | 5 ~ 60 | 13 | 4 | 10 | ||||
| 12 | -0.020 -0.025 |
30 ~ 200 | 5 ~ 80 | 17 | 5 | 12 | +0.015 +0.007 |
||
| 13 | 30 ~ 200 | 5 ~ 80 | 18 | 13 | |||||
| 16 | 30 ~ 250 | 8 ~ 80 | 8 | 21 | 16 | ||||
| 20 | -0.025 -0.030 |
30 ~ 300 | 8 ~ 100 | 25 | 20 | +0.017 +0.008 |
|||
| 25 | 40 ~ 350 | 8 ~ 120 | 30 | 25 | |||||
| 28 | 50 ~ 300 | 8 ~ 120 | 33 | 28 | |||||
| 30 | 50 ~ 400 | 8 ~ 130 | 35 | 30 | |||||
| 32 | -0.030 -0.035 |
50 ~ 350 | 8 ~ 130 | 37 | 32 | +0.020 +0.009 |
|||
| 35 | 60 ~ 450 | 8 ~ 130 | 40 | 35 | |||||
| 40 | -0.030 -0.040 |
80 ~ 500 | 10 ~ 200 | 10 | 45 | 8 | 40 | ||
| 50 | 100 ~ 550 | 12 ~ 200 | 12 | 55 | 50 | ||||
| 60 | -0.030 -0.050 |
200 ~ 550 | 15 ~ 200 | 15 | 65 | 60 | +0.024 +0.011 |
||
