ล็อกกิ้งบล็อค
Locking Blocks

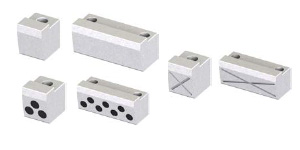

ล็อกกิ้งบล็อค (Locking Blocks) ชิ้นส่วนแม่พิมพ์ฉีดพลาสติก
Models:
25LBCSK (ธรรมดา Plain)
25LBCSZ (ออยฟรี Oil FreeTM)
25LBCSM (ร่องน้ำมัน Oil Groove)
more
- Model 25LBCSK/25LBCSZ/25LBCSM
- Manufacturer Code LBCSK/LBCSZ/LBCSM
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Model | L | T | A | G° | a | L1 | L2 | d1 | d2 | t | |||||||||||||
| 25LBCSK 25LBCSM 25LBCSZ |
20 | 10 | 13 | 15 | 18 | 23 | 28 | 33 | 38 | 48 | 17 | 20 | 22 | 6 | 6 | 13 | 9.5 | 5.5 | 6 | ||||
| 15 | 13 | 15 | 18 | 23 | 28 | 33 | 38 | 48 | 58 | 15 | 17 | 20 | 22 | ||||||||||
| 20 | 15 | 17 | |||||||||||||||||||||
| 25 | 10 | 23 | 28 | 33 | 38 | 48 | 58 | 17 | 20 | 22 | 7 | 10 | 17 | 11 | 6.5 | 7 | |||||||
| 15 | 18 | 23 | 28 | 33 | 38 | 48 | 58 | 68 | 78 | 15 | 17 | 20 | 22 | ||||||||||
| 20 | |||||||||||||||||||||||
| 30 | 10 | 33 | 38 | 48 | 58 | 68 | 78 | 15 | 17 | 20 | 22 | 8 | 13 | 21 | 14 | 9 | 9 | ||||||
| 15 | |||||||||||||||||||||||
| 20 | |||||||||||||||||||||||
