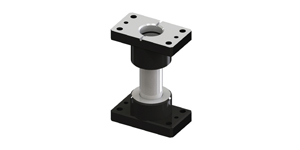

Oil Free type Guide Post Set with dowel pin holes. Get better tool life with Oil Free solid lubrication solution. Standard guide post set for metal stamping die.
Oil Free Guide Post Set
Model: 25SYZP
Model | D | L | A | B | a | b | d | H | H1 | T | ℓ | a1 | b1 | e H7 | Bolts 24CB |
Dowel Pin |
||||||||||||||||||
25SYZP | 25 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 200 | 84 | 48 | 66 | 30 | 9 | 30 | 45 | 20 | 66 | 33 | 15 | 8 | +0.015 0 |
8x35 | 8-30 | ||||||
32 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 200 | 220 | 250 | 100 | 58 | 76 | 36 | 11 | 40 | 50 | 76 | 38 | 18 | 10x40 | ||||||||||
38 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 200 | 220 | 250 | 280 | 300 | 130 | 75 | 100 | 44 | 50 | 60 | 25 | 100 | 50 | 22 | 10 | 10x45 | 10-40 | ||||||||
50 | 160 | 170 | 180 | 200 | 220 | 250 | 280 | 300 | 350 | 155 | 90 | 125 | 60 | 14 | 65 | 85 | 125 | 62.5 | 30 | 12x50 | ||||||||||||||
60 | 180 | 200 | 220 | 250 | 280 | 300 | 350 | 400 | 190 | 120 | 150 | 80 | 18 | 75 | 100 | 30 | 150 | 75 | 40 | 13 | +0.018 0 |
16x60 | 13-50 |
