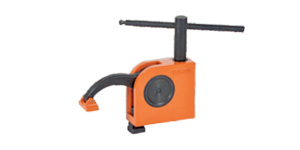

Compact Milling Clamp
Multi-purpose quick clamping down on workpiece for quick milling.The clamp can be attached to the machine table T-Slot. The clamp operate by turning the top spanner; the spanner can be remove during milling.
The clamp head can be move down pass it's base by 55mm. Optional attachment can be use to increase overall clamping height.
Choose the clamp model by the T-Slot size of your machine.
more
- Model 11CMC
- Manufacturer Code CMC
Swipe
| Order Code | Clamping Height Range |
Max Clamping Open |
Use With T-Slot |
Holding Capacity |
Weight (kg) |
| 11CMC-12 | -55 ~ 125 |
180 | 12 | 1,600kg | 2.00 |
| 11CMC-14 | 14 | 2.00 | |||
| 11CMC-16 | 16 | 2.00 | |||
| 11CMC-18 | 18 | 2.10 |
