Diamond Dressers

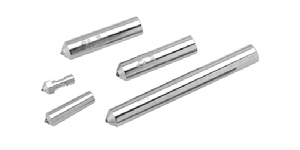

Diamond Dressers, single point type. The standard diamond dresser for general grinding wheel dressing to ensure best grinding.
The display sizes are our standard stock sizes, for customization please let us know.
more
- Model 16DS
- Manufacturer Code DS
View Online
Download
Swipe

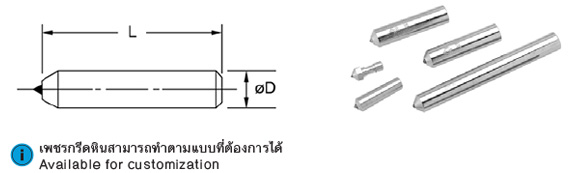

| Order Code |
Approx. wt. (cts.) |
Use for Grinding Wheels Size (mm) |
ØD | L |
| 16DS-005 | 0.18 | Ø150x25 or smaller | 12 | 100 |
| 16DS-010 | 0.2 | |||
| 16DS-015 | 0.25 | |||
| 16DS-020 | 0.35 | Ø150~Ø300x25 | ||
| 16DS-025 | 0.5 | |||
| 16DS-033 | 0.75 | |||
| 16DS-050 | 1 | Ø300~Ø450x25~40 | ||
| 16DS-075 | 1.5 | Ø450~Ø600x50~100 | ||
| 16DS-100 | 2 | Ø600 / or larger |
