NC Drill Taper Shank 120°
Magafor NC Drill with Morse Taper shank 120°
more
- Model 061906
- Manufacturer Code 1906
View Online
Download
Swipe

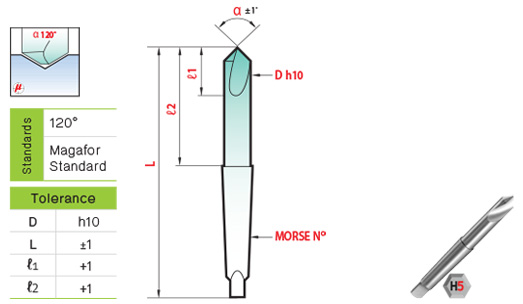

| D | L | ℓ1 | ℓ2 | Morse Taper | Order Code |
| HSSE | |||||
| Model 061906 | |||||
| 10 | 130 | 25 | 64 | MT1 | 06190610000 |
| 12 | 130 | 30 | 64 | MT1 | 06190612000 |
| 16 | 148 | 35 | 68 | MT2 | 06190616000 |
| 20 | 148 | 40 | 68 | MT2 | 06190620000 |
| 25 | 171 | 45 | 72 | MT3 | 06190625000 |
