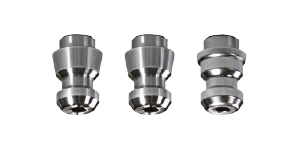

Drawbar
For positioning in Zero-Point Chuck clamping system. The combination of these three drawbars can keep the centering point at the same position. The tolerance between the Zero-Point Chuck and Drawbar must be controlled within ±0.01mm.
02CGMPZ-24B : Centering Drawbar, define the datum point without moving
02CGMPZ-24L : Compensation Drawbar, can slightly move on one axis
02CGMPZ-24H : Chucking Drawbar, can slightly move on two axis
Material: High Hardness Stainless Steel

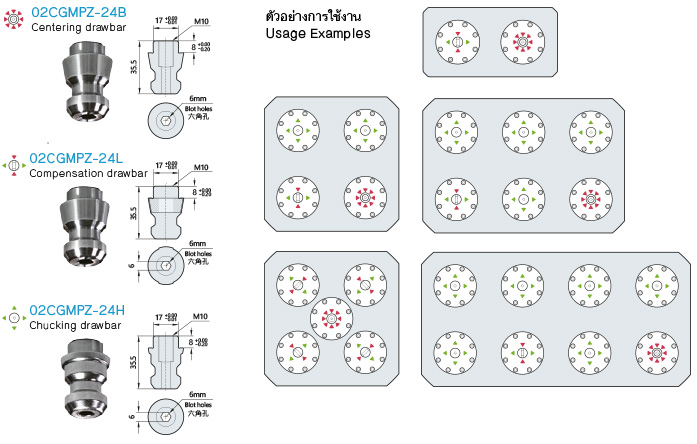

See the setup example below or contact our sale representatives.
more
- Model 02CGMPZ-24B/02CGMPZ-24L/02CGMPZ-24H
- Manufacturer Code PZ-24B/PZ-24L/PZ-24H
Download
Swipe
| Order Code | Movable Axis | Material |
| 02CGMPZ-24B | no movement | High Hardness Stainless Steel |
| 02CGMPZ-24L | 1 axis | |
| 02CGMPZ-24H | 2 axis |
