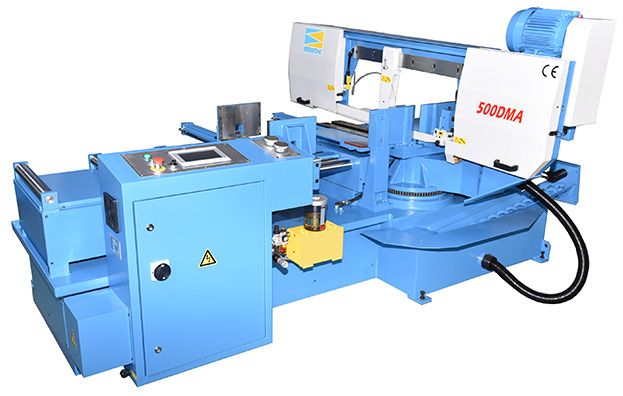

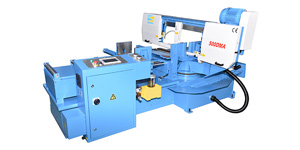

CNC Double Miter Band Saw Machines
Touch Panel CNC Control with inverter blade speed drive. Full automatic cutting cycle help reduce cutting time greatly. The CNC controller can be program externally on separate computer.
- For Frequent Change of Straight and Miter cuts Stepless. From +30° to -45° on both directions
- Programming of Cutting Lengths, Angles and Number of Pieces.
- Automatic Movement of Vices in Conjunction With Automatic Miter Positioning Accuracy of 0.1°.
- The Accuracy of Hydraulic Length Feed of Material to ±0.15mm.
Standard Equipments:
- Inverter Blade Speed Drive
- Mist Lubrication
- Laser Liner
Optional Equipments:
- Hydraulic Blade Tension
- 2M / 3M / 3M Powered Roller Table
- Auto-Chip Conveyor
more
Download
Swipe
| Order Code | 26CF-500DMA | 26CF-5015DMA | 26CF-5030DMA | |
| Cutting Capacity (mm) |
● Round 90° | 325 | 325 | 325 |
| ■ Rectangle 90° | 320 x 500 | 320 x 500 | 320 x 500 | |
| ■ Rectangle 45° Left | 320 x 350 | 320 x 350 | 320 x 350 | |
| ■ Rectangle 30° Left | 320 x 210 | 320 x 210 | 320 x 210 | |
| ■ Rectangle 45° Right | 320 x 350 | 320 x 350 | 320 x 350 | |
| Motors | Saw Blade | 2.25kW | 2.25kW | 2.25kW |
| Hydraulic | 0.75kW | 0.75kW | 0.75kW | |
| Blade Size | 4755 x 34 x 1.1 | 4755 x 34 x 1.1 | 4755 x 34 x 1.1 | |
| Blade Speed (M/min) | 25 – 90 | 25 – 90 | 25 – 90 | |
| Single Feed Stroke (mm) | 600 (hydraulic feed vice) |
1500 (servo feed) |
2500 (servo feed) |
|
| Working Height (mm) | 650 | 650 | 650 | |
| Dimensions (mm) |
Length | 2860 | 4100 | 4800 |
| Width | 2280 | 2280 | 2280 | |
| Height | 1810 | 1810 | 1810 | |
| Net Weight (kg) | 2300 | 2900 | 3200 | |
