Electro-Permanent Magnetic Chuck Index Table

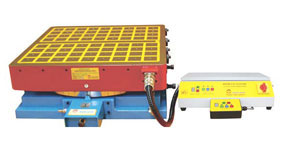

Electro-Permanent Magnetic Chuck Index Table type for working the sides without re-clamping the workpieces. The index table is pneumatic index table.
more
- Model 03EEPM
- Manufacturer Code EEPM
View Online
Download
Swipe
| Order Code | 03EEPM-300IT | 03EEPM-470IT | 03EEPM-600IT | 03EEPM-800IT |
| L x W | 300 x 300 | 470 x 470 | 600 x 600 | 800 x 800 |
| Height | 193 | 190 | 226 | 302 |
| Air Pressure | 5-8 kg/cm2 | |||
| Rotating | Manual | |||
| Max Load Weight Vertical | 1200kg | 2400kg | 3400kg | 4500kg |
| Allowable Load Weight | 500kg | 1000kg | 2000kg | 3000kg |
| Table Rotation | Clockwise & Anticlockwise | |||
| Division | Standard 72T~5° (Optional 360T~1°) | |||
| Net Weight | 104kg | 223kg | 453kg | 983kg |
| Dimension of Pole | 50x50 | |||
| No. of Pole | 16 | 49 | 72 | 144 |
| Squareness of Table | 0.01 | 0.015 | 0.02 | 0.02 |
| Repeat Rotation | 0.01 | 0.01 | 0.015 | 0.015 |
| Parallelism of Table | 0.01 | 0.015 | 0.02 | 0.02 |
| Basic Side Squareness | 0.015 | 0.015 | 0.02 | 0.02 |
| AC 220V | ||||
| Current AMP | 15A | 25A | 14A | 33A |
| Controller (included) | C1 | C2 | C4 | C4 |
| AC 380V ~ 440V | ||||
| Current AMP | 18A | 17A | 25A | 13A |
| Controller (included) | C1 | C2 | C2 | C4 |
