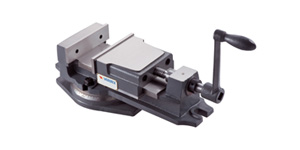

K-Type Milling Vise

Vise for manual milling machine work holding.

Model: 02VK

more
  • Model 02VK
  • Manufacturer Code VK
Brand
Vertex
Vertex
  • Holding System

    Mechanial

Swipe

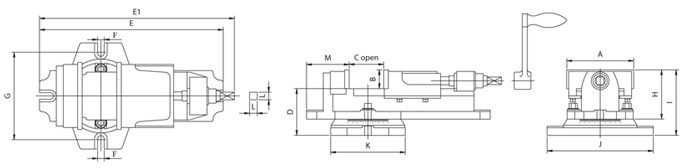

K-Type Milling Vise drawing
Order Code A B C D E E1 F G H I J K L M Max
Clamp Force
Weight
(kg)
02VK-4 104 36 62 76 293 310 13 145 83 113 176 122 15 65 900kgf 10
02VK-5 130 37 80 92 362 384 13 172 97 129 209 147 15 84 900kgf 16
02VK-6 152 43 112 105 442 473 15 209 108 148 260 181 16.5 90 1000kgf 27
02VK-8 204 63 146 127 579 609 18 312 148 190 350 234 21 122 1400kgf 58
