Pilot Punch With Dowel Hole for metal stamping die.
1. Choose punch material and coating

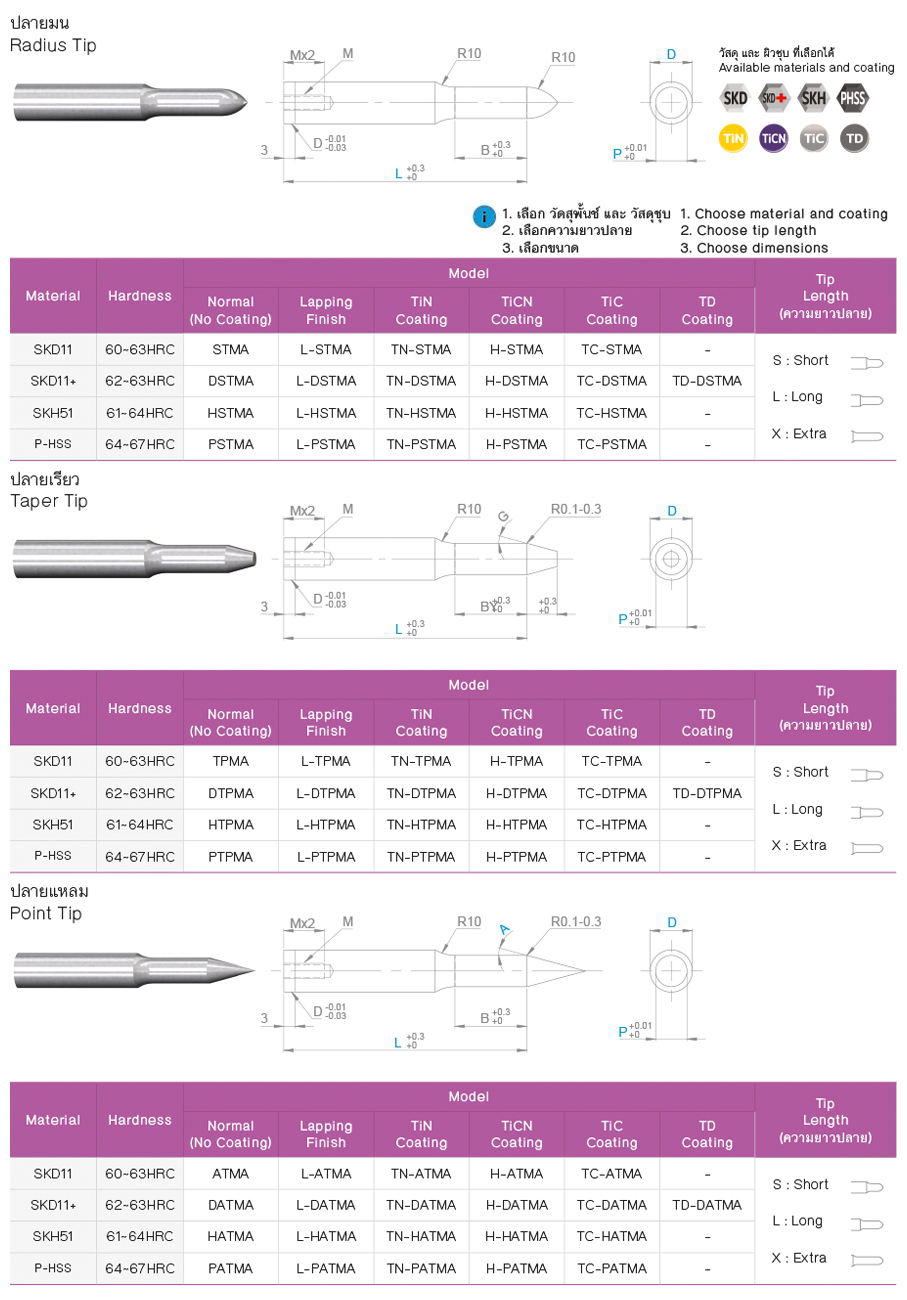

2. Choose tip shape (Radius Tip, Taper Tip, Point Tip) & length
3. Choose dimensions
Order Code | L | P 0.01 mm increment |
A | B | M | Y | |||||||||
Model | Tip Length | D m5 | |||||||||||||
Model Code |
S | 10 | +0.012 +0.006 |
42 | 52 | 62 | 72 | 82 | 92 | 102 | 3.00 – 9.99 | (10) (15) (20) 25 30 |
15 (L42 B=10) |
5 | 5 |
13 | +0.015 +0.007 |
42 | 52 | 62 | 72 | 82 | 92 | 102 | 6.00 – 12.99 | 6 | 8 | ||||
16 | 42 | 52 | 62 | 72 | 82 | 92 | 102 | 10.00 – 15.99 | 21 (L42 B=10) |
||||||
20 | +0.017 +0.008 |
42 | 52 | 62 | 72 | 82 | 92 | 102 | 13.00 – 19.99 | ||||||
25 | 42 | 52 | 62 | 72 | 82 | 92 | 102 | 18.00 – 24.99 | |||||||
L | 10 | +0.012 +0.006 |
52 | 62 | 72 | 82 | 92 | 102 | 3.00 – 9.99 | (10) (15) (20) 25 30 |
21 | 5 | 5 | ||
13 | +0.015 +0.007 |
52 | 62 | 72 | 82 | 92 | 102 | 6.00 – 12.99 | 6 | 8 | |||||
16 | 62 | 72 | 82 | 92 | 102 | 10.00 – 15.99 | 27 | ||||||||
20 | +0.017 +0.008 |
62 | 72 | 82 | 92 | 102 | 13.00 – 19.99 | ||||||||
25 | 62 | 72 | 82 | 92 | 102 | 18.00 – 24.99 | |||||||||
X | 10 | +0.012 +0.006 |
62 | 72 | 82 | 92 | 102 | 3.00 – 9.99 | (10) (15) (20) 25 30 |
32 | 5 | 5 | |||
13 | +0.015 +0.007 |
62 | 72 | 82 | 92 | 102 | 6.00 – 12.99 | 6 | 8 | ||||||
16 | 72 | 82 | 92 | 102 | 10.00 – 15.99 | 42 | |||||||||
20 | +0.017 +0.008 |
72 | 82 | 92 | 102 | 13.00 – 19.99 | |||||||||
25 | 72 | 82 | 92 | 102 | 18.00 – 24.99 |
For quotations, let us know the product code and quantity. We will surely get back to you.
