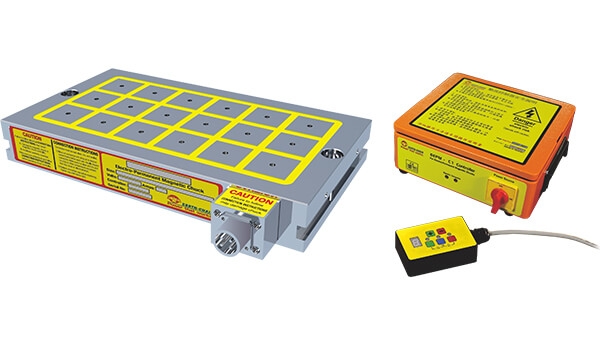

ElectroPermanent Magnetic Chuck (B)

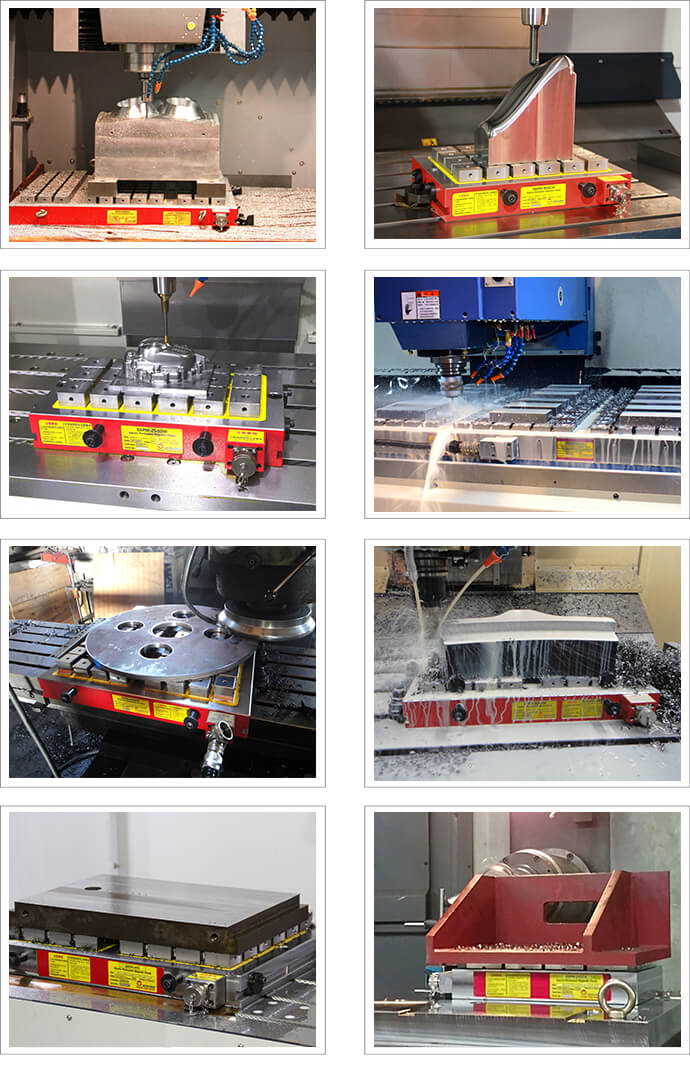

Earth-Chain Electro-Permanent Magnetic Chuck standard model EEPM for milling large workpiece.

Model: 03EEPM–B
Pole : 50 x 50mm
Flux Line : 25mm
Magnetic Force : 1250±5% kgf /4 Poles

more
  • Model 03EEPM
  • Manufacturer Code EEPM
Brand
Earth Chain
Earth Chain
Swipe
ElectroPermanent Magnetic Chuck (B) drawing
Order Code W L S S1 M T Height PITCH
(G)		 POLE
(P)		 No.
Poles		 Weight
(kg)		 AC 220V AC 380V ~ 440V
Current
AMP		 Current
AMP
03EEPM-2540B 240 430 30 25 - M8 60 10 50x50 18 50 18A 16A
03EEPM-2560B 240 590 30 24 69 30A 12A
03EEPM-2580B 240 810 30 33 92 30A 19A
03EEPM-2590B 240 870 30 36 98 18A 18A
03EEPM-25100B 240 990 30 42 111 26A 14A
03EEPM-3030B 300 310 - 16 44 20A 8A
03EEPM-3040B 300 430 - 24 61 30A 12A
03EEPM-3060B 300 590 30 32 82 30A 20A
03EEPM-3080B 300 810 30 44 116 25A 13A
03EEPM-3090B 300 870 30 48 123 30A 12A
03EEPM-30100B 300 990 30 56 138 35A 19A
03EEPM-4040B 420 430 - 36 84 18A 18A
03EEPM-4050B 420 480 - 42 95 26A 14A
03EEPM-4060B 420 590 30 48 116 30A 12A
03EEPM-4080B 420 810 30 66 159 30A 19A
03EEPM-4090B 420 870 30 72 169 18A 18A
03EEPM-40100B 420 990 30 84 193 26A 12A
03EEPM-5060B 480 590 30 56 129 35A 19A
03EEPM-5080B 480 810 30 77 185 30A 13A
03EEPM-5090B 480 870 30 84 196 26A 14A
03EEPM-50100B 480 990 30 98 219 30A 12A
03EEPM-6060B 600 590 30 72 165 18A 18A
03EEPM-6080B 600 810 30 99 215 30A 19A
03EEPM-6090B 600 870 30 108 240 27A 20A
03EEPM-60100B 600 990 30 126 274 32A 21A
03EEPM-8080B 755 810 30 121 271 33A 18A
