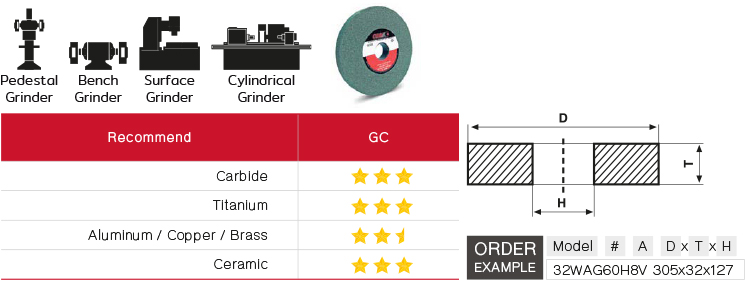

GC Grinding Wheel
High friability green silicon carbide GC Grinding Wheel suitable for non-ferrous specially carbide.
more
- Model 32GC
- Manufacturer Code GC
Swipe
| Order Code | Grain # | Dimensions | Type | Cutting Speed |
R.P.M. | |
| mm | inch | |||||
| 32GC46J7V 180x13x31.75 | #46 | 180 x 13 x 31.75 | 7 x1/2 x 1-1/4 | 1 | 35 M/S | 3750 |
| 32GC46J7V 180x19x31.75 | 180 x 19 x 31.75 | 7 x 3/4 x 1-1/4 | 1 | 35 M/S | 3750 | |
| 32GC46J7V 200x19x31.75 | 200 x 19 x 31.75 | 8 x 3/4 x 1-1/4 | 1 | 35 M/S | 3350 | |
| 32GC60J7V 150x25x31.75 | #60 | 150 x 25 x 31.75 | 6 x 1 x 1-1/4 | 1 | 35 M/S | 4500 |
| 32GC60J7V 180x19x31.75 | 180 x 19 x 31.75 | 7 x 3/4 x 1-1/4 | 1 | 35 M/S | 3750 | |
| 32GC60J7V 200x19x31.75 | 200 x 19 x 31.75 | 8 x 3/4 x 1-1/4 | 1 | 35 M/S | 3350 | |
| 32GC60J7VT-5 200x25x31.75 | 200 x 25 x 31.75 | 8 x 1 x 1-1/4 | 5 | 35 M/S | 3350 | |
| 32GC60J8V 150x15.9x31.75 | 150 x 15.9 x 31.75 | 6 x 5/8 x 1-1/4 | 1 | 35 M/S | 4500 | |
| 32GC60J8V 150x19x31.75 | 150 x 19 x 31.75 | 6 x 3/4 x 1-1/4 | 1 | 35 M/S | 4500 | |
| 32GC80J7V 180x13x31.75 | #80 | 180 x 13 x 31.75 | 7 x1/2 x 1-1/4 | 1 | 35 M/S | 3750 |
| 32GC100J7V 150x19x31.75 | #100 | 150 x 19 x 31.75 | 6 x 3/4 x 1-1/4 | 1 | 35 M/S | 4500 |
| 32GC100J7V 180x19x31.75 | 180 x 19 x 31.75 | 7 x 3/4 x 1-1/4 | 1 | 35 M/S | 3750 | |
| 32GC100J7V 200x19x31.75 | 200 x 19 x 31.75 | 8 x 3/4 x 1-1/4 | 1 | 35 M/S | 3350 | |
| 32GC100J10VT-5 200x25x31.75 | 200 x 25 x 31.75 | 8 x 1 x 1-1/4 | 5 | 35 M/S | 3350 | |
