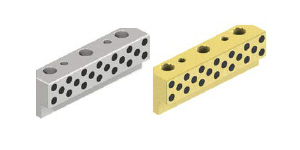

Heel Guide Rail with Chamfer
Heel Guide Rail with Chamfer components for plastic injection mold.
Models:
25SGRIS (Steel SKS3 + Oil Free)
25SGRWS (Copper Alloy + Oil Free)
more
- Model 25SGRIS/25SGRWS
- Manufacturer Code SGRIS/SGRWS/SGLXSS/SGLXSW
View Online
Download
Swipe
| Model | Type | W | L | T | Wa | La | Lb | Lc | Ld | H | t | r |
| 25SGR | IS (Steel+Oilfree) WS (Copper Alloy +Oilfree) |
20 | 60 | 23 28 |
9 | 20 | 20 | 40 | 10 | 8 | 5.5 | 0.5 |
| 80 | 50 | 15 | 20 | 30 | ||||||||
| 100 | 70 | 40 | ||||||||||
| 120 | 45 | 60 | ||||||||||
| 140 | 55 | 80 | ||||||||||
| 160 | 65 | 100 | ||||||||||
| 25 | 80 | 28 33 43 |
9 | 45 | 17.5 | 20 | 30 | 10 | 7.5 | 0.8 | ||
| 100 | 65 | 40 | ||||||||||
| 120 | 42.5 | 60 | ||||||||||
| 140 | 52.5 | 80 | ||||||||||
| 160 | 62.5 | 100 | ||||||||||
| 180 | 72.5 | 120 | ||||||||||
| 200 | 82.5 | 140 | ||||||||||
| 30 | 100 | 43 53 |
11 | 60 | 20 | 20 | 40 | 15 | 11 | 0.8 | ||
| 120 | 40 | 40 | ||||||||||
| 140 | 50 | 60 | ||||||||||
| 160 | 60 | 80 | ||||||||||
| 180 | 70 | 100 | ||||||||||
| 200 | 80 | 120 |
